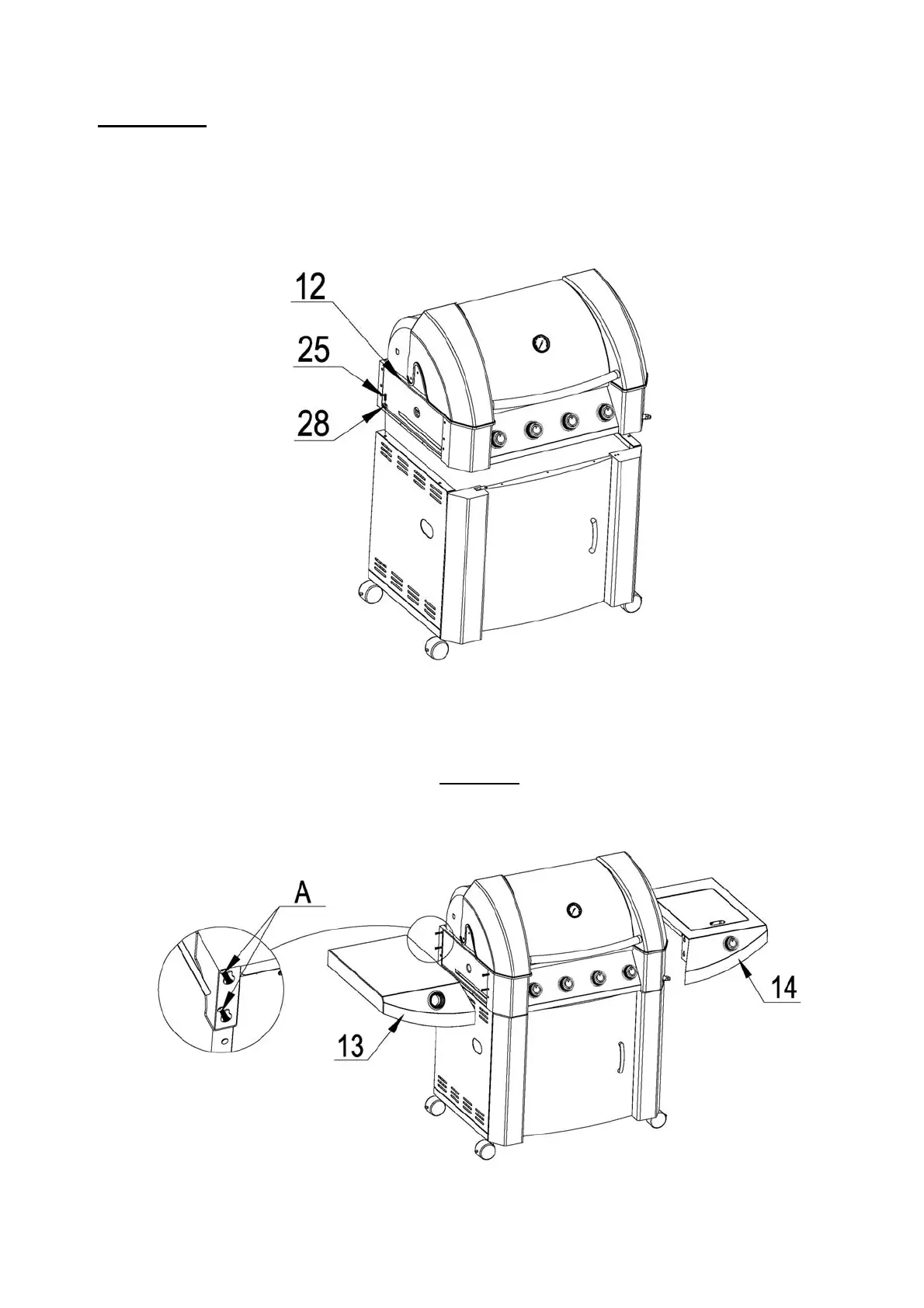

Step 7

You will need

4×M6×12 screws (No.25)

4×Fibre washers (No.28)

Fix the BBQ frame (No.12) to the trolley with 4×M6×12 screws (No.25) and 4× Fibre

washers (No.28).

Step 8

Attach side shelf & side burner.

Loosen the BBQ frame screws as shown in picture A.

Attach the side shelf & side burner (No.13 & 14) to the frame, and re-tighten the screws.
