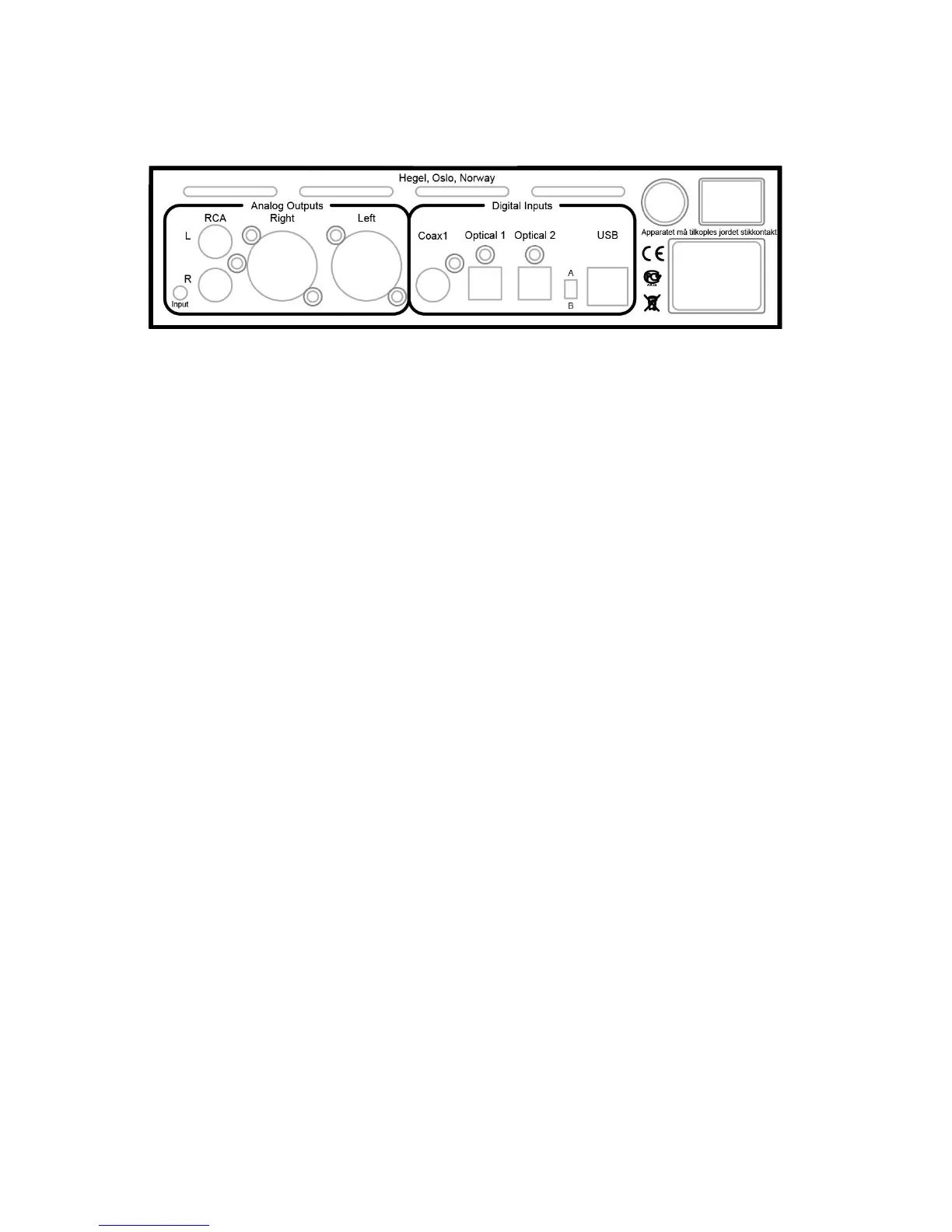

Rear Panel
From left to right the buttons/connectors are:
Input selector button
Unbalanced outputs Phono / RCA left / right
Balanced outputs XLR right / left
Digital input Phono / RCA – Coax 1
Digital input TOSLINK / EIAJ Optical 1
Digital input TOSLINK / EIAJ Optical 2
USB mode selector switch
Digital input USB
Mains fuse
AC Power input
Main power switch (on/off)
We recommend connecting the signal cables when the D/A Converter and all other units of the audio
system are switched off.
The D/A Converter has two types of analog audio outputs: unbalanced audio signal (RCA/phono) and
true balanced audio signal (XLR –pin 2 is positive phase, pin 3 is negative phase and pin 1 is chassis
ground).
We recommend using the balanced XLR outputs from the D/A Converter, as this will give the highest
level of sound quality.
