Rear Panel

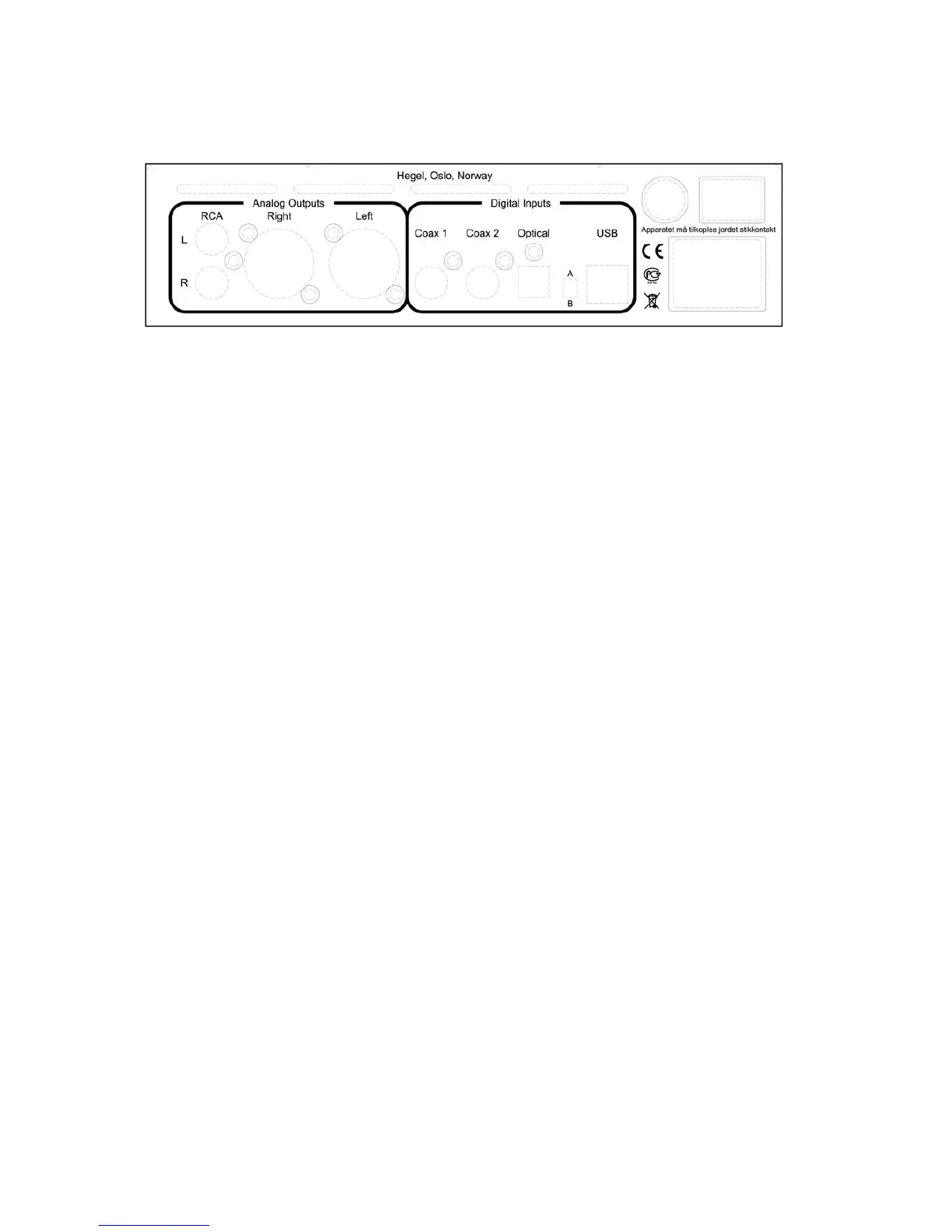

From left to right the connectors are:
Unbalanced outputs Phono / RCA left / right
Balanced outputs XLR right / left
Digital input Phono / RCA – Coax 1
Digital input Phono / RCA – Coax 2
Digital input TOSLINK® / EIAJ Optical
USB mode selector switch
Digital input USB
Mains fuse
AC Power input
Main power switch (on/off)
We recommend connecting the signal cables when the D/A Converter and all other units of the audio
system are switched off.
The D/A Converter has two types of analog audio outputs: unbalanced audio signal for RCA plugs
(phono plugs) and true balanced audio signal for XLR plugs (pin 2 is positive phase, pin 3 is negative
phase and pin 1 is chassis ground).
We recommend using the balanced XLR outputs from the D/A Converter, as this will give the highest
level of sound quality.
