3 Technical data
We reserve the right to make technical changes and improvements without
notice.
3.1 Clipper
Handle Ø 54 mm
Length 280 mm
Weight with battery 1.02 kg
Motor output seespecicationsplateonthedevice
Rotary speed seespecicationsplateonthedevice
Noise emission 65 dB (A) (EN 60745-1:2009)
Uncertainty K 3 dB (A)
3.2 Charger and power supply unit
Voltage seespecicationsplateonpowersupplyu nit
and charger.
Max.
current consumption
seespecicationsplateonpowersupplyunit
and charger.
Frequency seespecicationsplateonpowersupplyu nit
and charger.
3.3 Battery
Type Li-Ion
Voltage 10.8 V
Capacity seespecicationsplateonthebattery
3.4 Operating conditions
Ambient tempera-
ture range
0 - 40 °C
Maximum relative
humidity
75 %
4 Assembly and function
4.1 Construction
1 Blades
2 Clipperhead
3 Lubrication opening
4 Clipping pressure adjustment
5 Motor unit
6 ON/OFF switch
7 Interlock battery
8 Cord

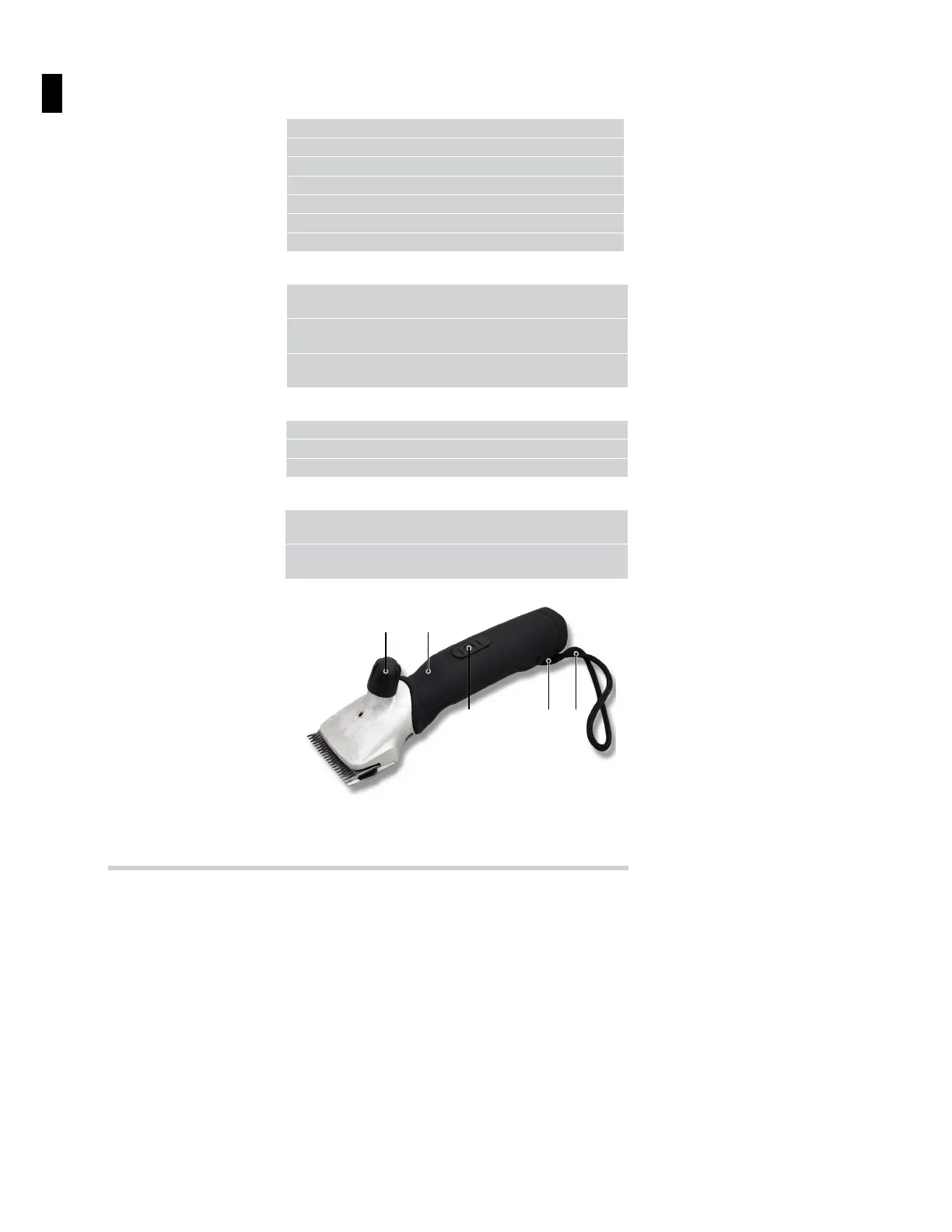

Fig. 1
4 5
6 7 8
