7

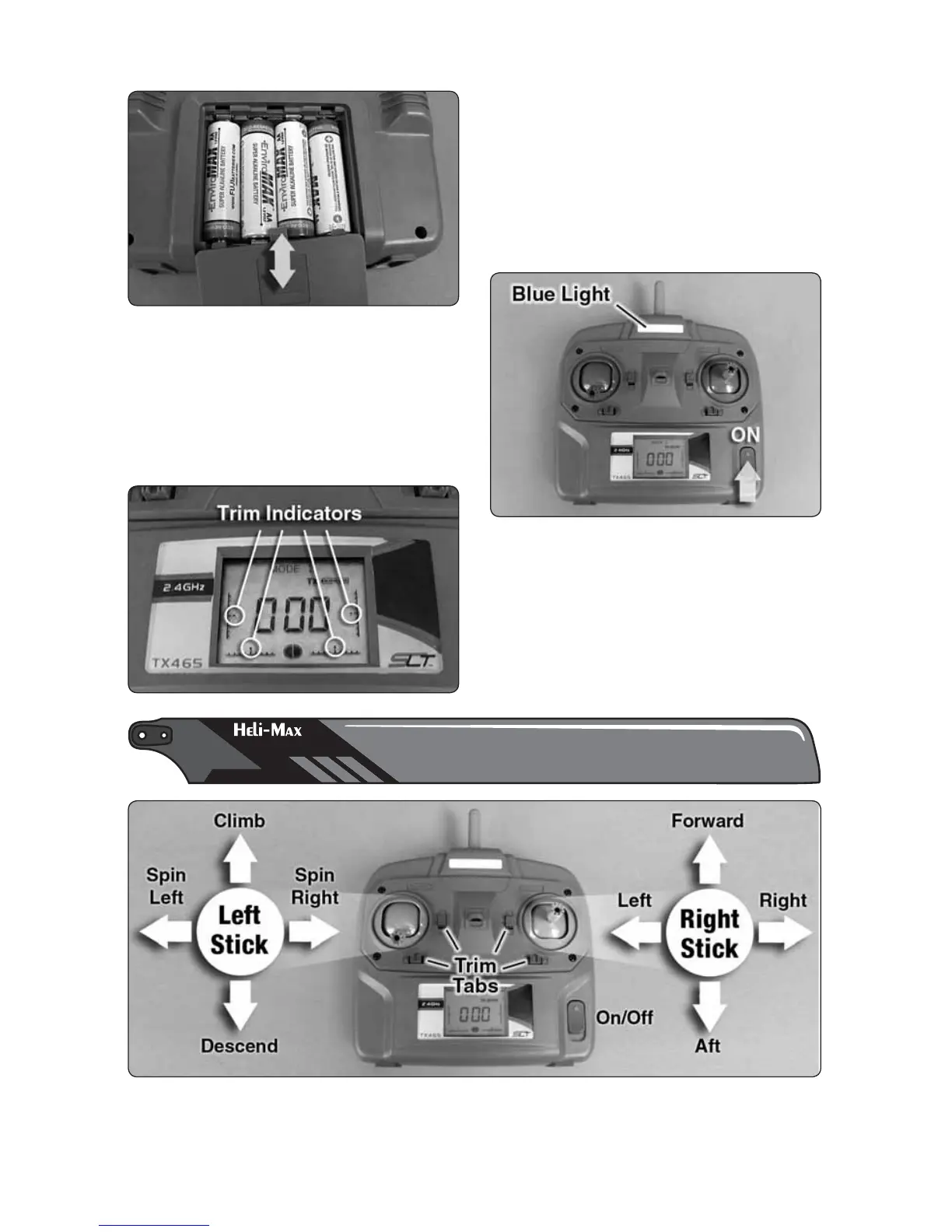

Transmitter Setup
❏ Install 4 AA batteries in the
transmitter by removing the
battery cover from the back of
the transmitter. Double-check the
polarity of each battery before
replacing the battery cover.
❏ Turn the Transmitter on and make
sure that there is a blue light behind
the Heli-Max panel at the top of the
transmitter. The LCD screen should
be on, with a throttle position indicator
and other information.
❏ Make sure the electronic trim
indicators on the display are centered.
®
TRANSMITTER CONTROLS
TRANSMITTER CONTROLS
All controls are described with the tail pointing directly toward you. This is
the best way to fly in the beginning since it keeps the control inputs oriented
the same direction.
