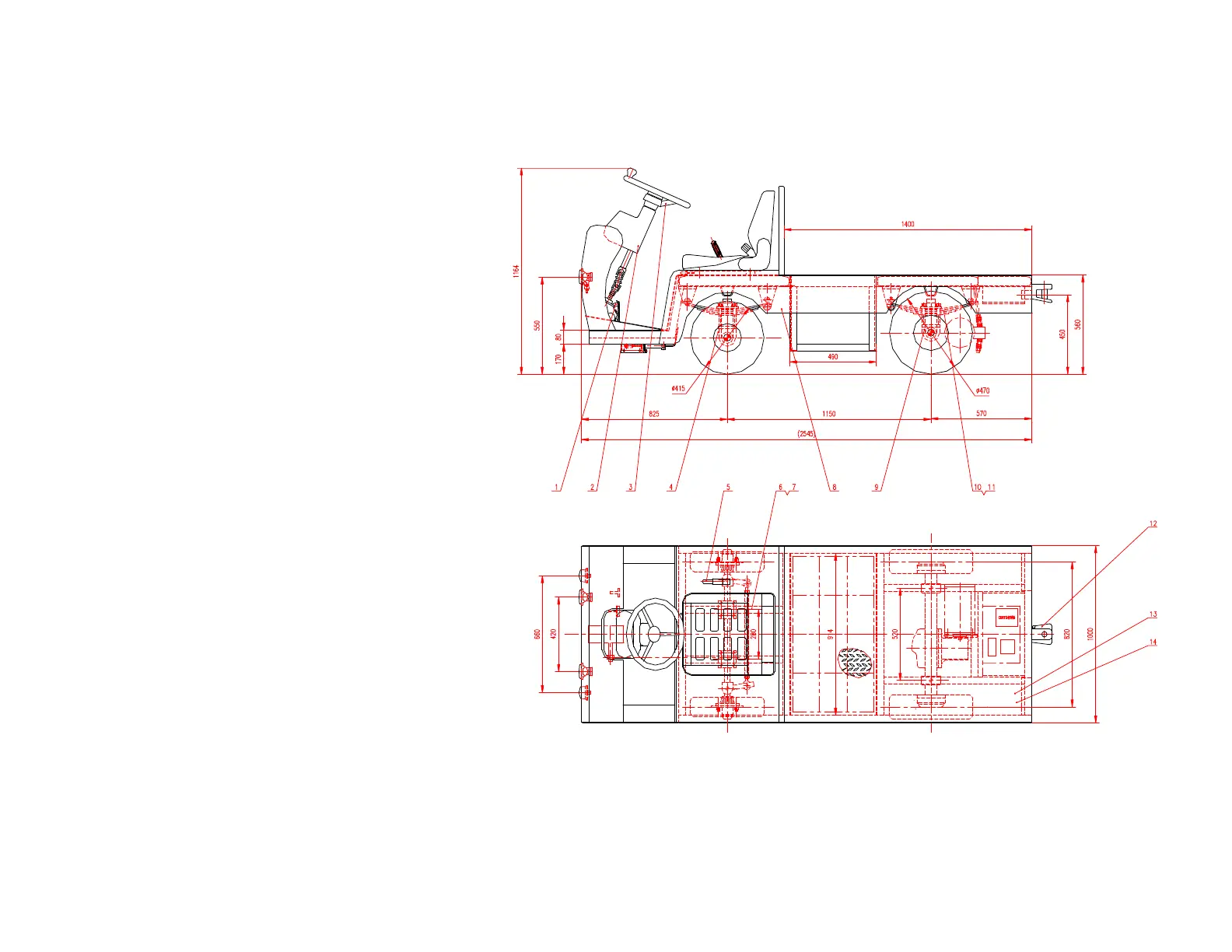

Tractor general drawing
1-driving brake operation
equipment
2-electrical system brake
system
3-turning system
4-turning wheel assembly
5-parking brake operation
equipment
6, 7-front hanging assembly
(left and right)
8- tractor body
9-driving wheel
10, 11-rear hanging assembly
(left and right)
12- traction pin mechanism
13- nameplate and paint
arrangement drawing
14-supplied accessories
