HELI CPC 20 User Manual

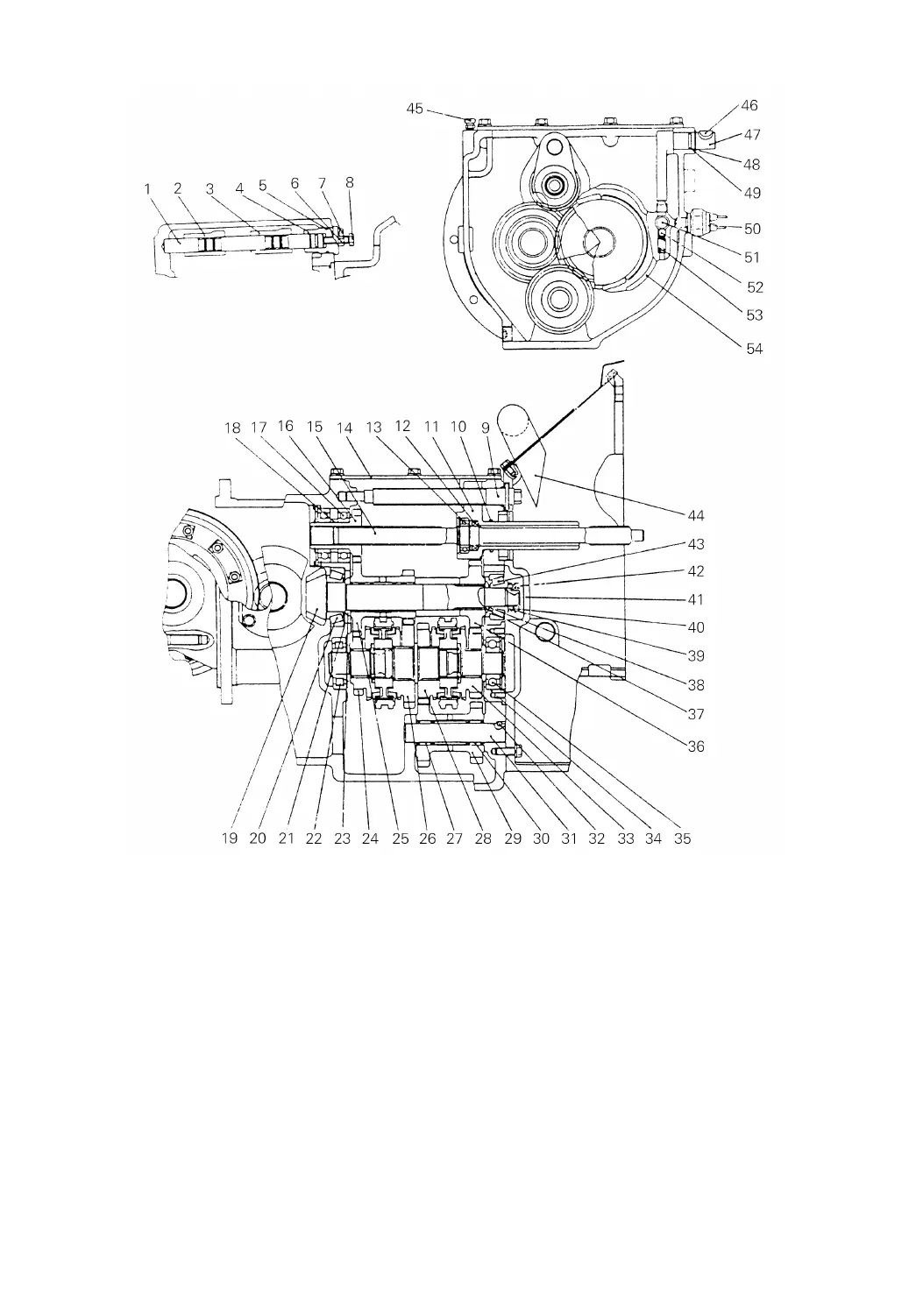

Fig. 3-1 Drive unit
(1) Shift rod
(2) Shift arm
(3) Shift arm
(4) Shaft arm
(5) O-ring
(6) Lock nut
(7) Adjusting bolt
(8) Stop bolt
(9) Slide lead screw
(10) O-ring
(11) Bearing retainer
(12) Oil seal
(13) Ball bearing
(14) Cover
(15) Driving shaft
(16) Input gear
(17) Ball bearing
(18) Spacer
(19) Output shaft
(20) Tapered roller bearing
(21) Shim
(22) Roller bearing
(23) Thrust washer
(24) High speed gear
(25) Cluster gear
(26) Low speed gear
(27) Needle bearing
(28) Reverse gear
(29) Idler gear
(30) Needle bearing
(31) Idler shaft
(32) Ball
(33) Forward gear
(34) Bearing case
(35) Ball bearing
(36) Output gear
(37) Spacer
(38) Shim
(39) Nut
(40) Lock washer
(41) Clutch case
(42) Lock nut
(43) Tapered roller
bearing
(44) Ventilator duct
(45) Breather
(46) Key
(47) Rotating
(48) Snap ring
(49) O-ring
(50) Back-up lamp sw.
(51) Shift rod
(52) Ball
(53) Spring
(54) Shift fork
-19-
