HELI G2 Series User Manual

56

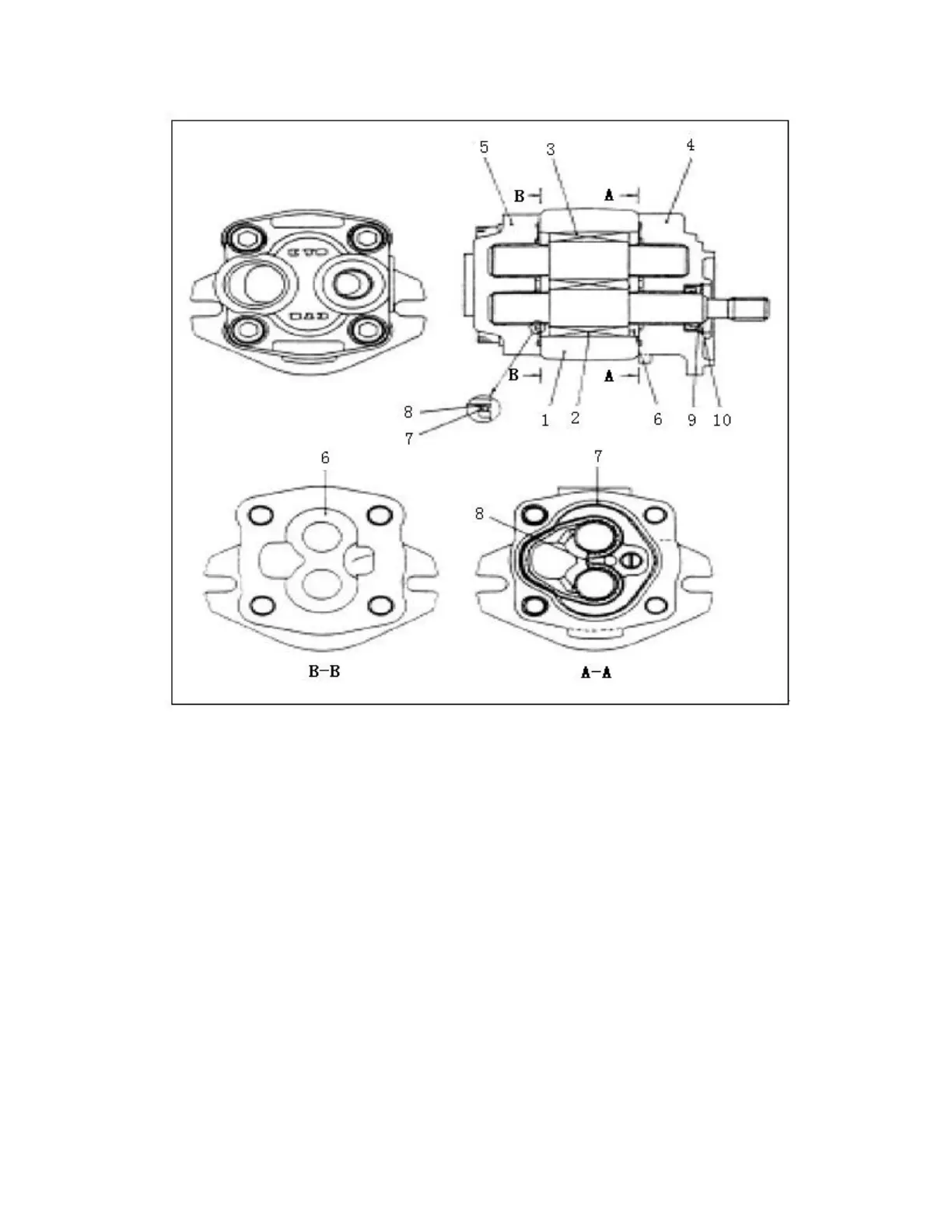

Fig. 5-2 Gear pump
(1) Pump body (2) Driving gear (3) Driven gear (4) Front cover (5) Rear cover
(6) Lining plate (7) Seal ring (8) Ring (9) Oil seal (10) Snap ring
5.1.2 Control Valve
The external of the control valve as shown in Fig. 5-3.
