MiniVent M1/100/120 N / C
Installation and Operation Instructions
2.0 Scope of delivery / packing unit
Leave the fan in its box until installation. Check that the fan is in good condition and has not been damaged in transit.
3.0 Preparation for wall or ceiling installation (surface mounted)
The assembly and start-up of the fan unit should be carried out first after finishing of all other work and after the final
cleaning in order to avoid damages and contamination of the fan unit.
The position of the cable exit is variable (see fig.2/3).
3.1 Cable exit from the wall
- Distance to the duct centre depending on cable exit 58/68* mm with a variable position under the casing.
- For a simple assembly an exit is recommended as shown (turnable by 90° in each case).
The optimal position is 45° each if the cable exit is directly at the position of the cable grommet.
- Duct inside diameter M1/100 N / C =100 mm or rather M1/120 N / C =120 mm
and distance to room corners: at least 90 mm
MiniVent M1/100/120 N / C
➍
➎
➏
➊

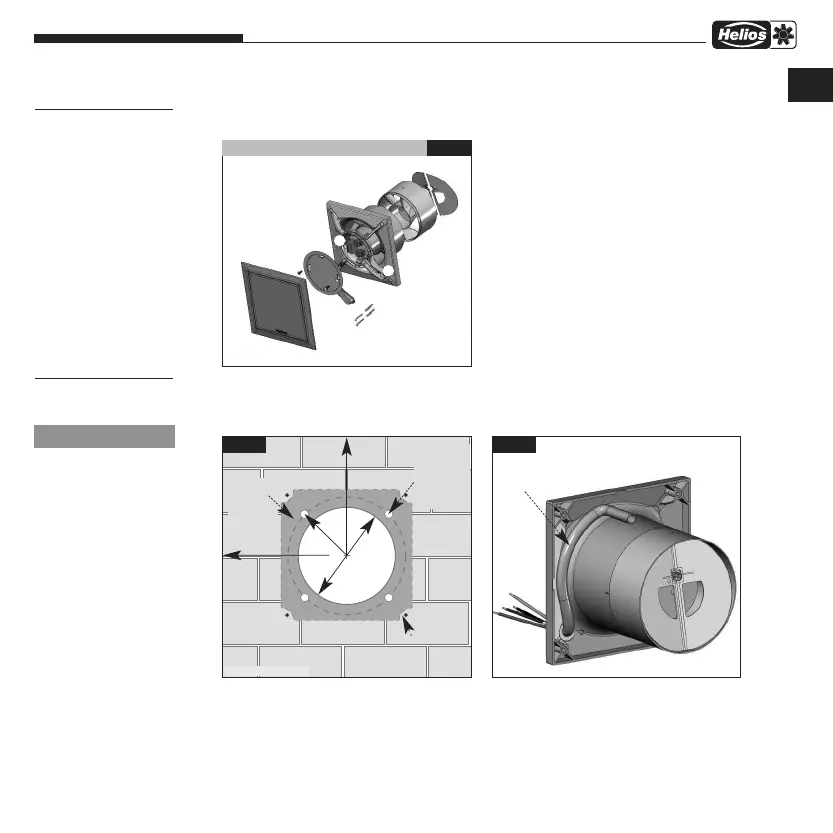

fig.1
➋
➊ Facia
➋ Cover of control board including 2 x fastening screws
➌ Electronic control board
➍ Casing with impeller
➎ Guide vane removable at reduced installation depth
➏ Removable back draught shutter
➐ Cable grommet
➑ Assembley kit
2 x screws with plugs for wall mounting
➌
fig.2
Ø
1
00
m
m
Ø
1
2
0
m
m
*
r=58 mm
r=68 mm*
min. 90 mm
min. 90 mm
Cable exit in
the dark
section
user-defi-
ned.
Drill holes
Recommen-
ded cable
exit optional
0...-360 °, ide-
ally in each
case 45 °
➐
➑
fig.3
Cable runs under the casing. Cable
length from the wall at least 180 mm.
