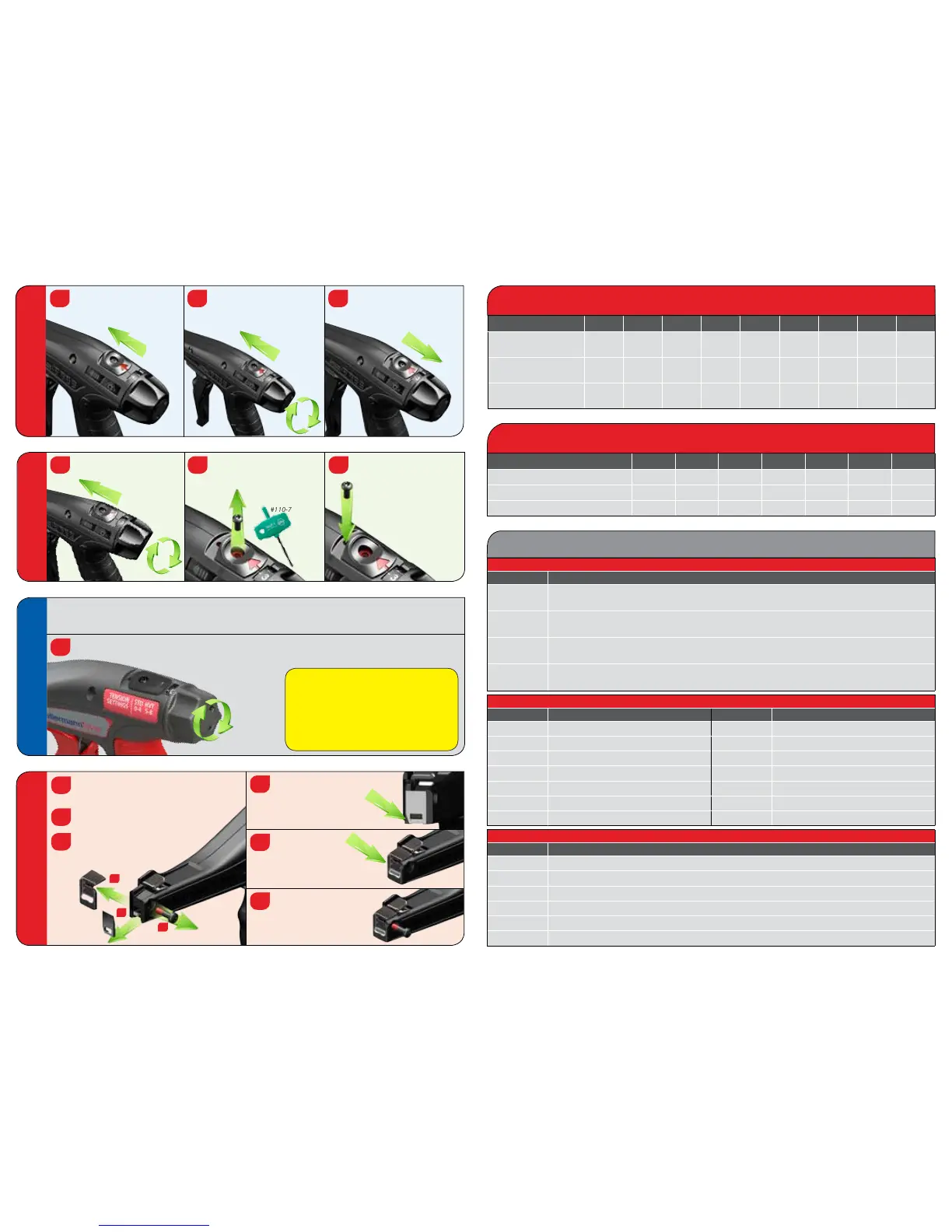

TOOL SETTING 0 1 2 3 4 5 6 7 8
EVO 7 / EVO 7SP
4 lb.
(18 N)
7 lb.
(31 N)
11 lb.
(49 N)
15 lb.
(67 N)
19 lb.
(85 N)
24 lb.
(107 N)
28 lb.
(125 N)
33 lb.
(147 N)
37 lb.
(165 N)
EVO 9
12 lb.
(53 N)
20 lb.
(89 N)
25 lb.
(111 N)
31 lb.
(138 N)
38 lb.
(169 N)
45 lb.
(200 N)
54 lb.
(240 N)
62 lb.
(276 N)
69 lb.
(307 N)
EVO 9HT
27 lb.
(120 N)
35 lb.
(156 N)
44 lb.
(196 N)
55 lb.
(245 N)
67 lb.
(298 N)
80 lb.
(356 N)
94 lb.
(418 N)
105 lb.
(467 N)
116 lb.
(516 N)
APPROXIMATE TENSION CUT-OFF FORCE
CABLE TIE
T18
T30 T40 T50 T120 T150 T250
EVO 7 / EVO 7SP 0 to 2 1 to 4 3 to 6 5 to 8 N/A N/A N/A
EVO 9 N/A 0 to 1 0 to 3 1 to 4 3 to 8 4 to 8 6 to 8
EVO 9HT N/A N/A N/A 0 to 1 2 to 5 4 to 8 5 to 8
RECOMMENDED TENSION SETTINGS
CABLE TIE TOOLS
PART NO. DESCRIPTION
110-70083
EVO 7 Cable Tie Application Tool for use with 18 lb. to 50 lb. cable ties. Standard Tension, Standard
Hand Span, 1/pk.
110-70084
EVO 7SP Cable Tie Application Tool for use with 18 lb. to 50 lb. cable ties. Standard Tension, Short Hand
Span, 1/pk.
110-80000
EVO 9 Heavy Duty Cable Tie Application Tool for use with 50 lb. to 250 lb. cable ties. Standard Tension,
Standard Hand Span, 1/pk.
110-80004
EVO 9HT High Tension Cable Tie Application Tool for use with 120 lb. to 250 lb. cable ties. High Tension,
Standard Hand Span, 1/pk.
ACCESSORIES / REPLACEMENT PARTS
PART NO. DESCRIPTION PART NO. DESCRIPTION
110-70021
EVO 7 Replacement Blade
110-80037 EVO 9 Replacement Blade
110-70011 EVO 7 Replacement Nosepiece 110-80018 EVO 9 Replacement Nosepiece
110-70131 EVO 7; 1 mm Extended Nosepiece 110-80064 EVO 9; 2 mm Extended Nosepiece
110-70132 EVO 7; 2 mm Extended Nosepiece 110-80065 EVO 9; 3 mm Extended Nosepiece
110-70133 EVO 7; 3 mm Extended Nosepiece 110-80066 EVO 9; 4 mm Extended Nosepiece
110-70089 EVO Tools Calibration Tool 110-80067 EVO 9; 5 mm Extended Nosepiece
110-70091 T8 Star Driver 110-99000 UC200 Digital Calibration System
MOST POPULAR CABLE TIES
PART NO. DESCRIPTION
T18R9M4 4", 18 lb. Cable Tie, Natural Nylon for up to 0.87" bundle
T30R0M4 6", 30 lb. Cable Tie, Black Nylon for up to 1.5" bundle
T50R0HSM4 8", 50 lb. Cable Tie, Black Heat Stabilized Nylon for up to 2" bundle
T120R0H4 15", 120 lb. Cable Tie, Black Nylon for up to 4" bundle
DCT110HIRK2 19", 150 lb. Dual Clamping, wide strap tie for up to 2, 2.3" bundles
T250M0X2 22", 250 lb. Cable Tie, Black Nylon for up to 5.9" bundle
PART NUMBERS
BLADE REPLACEMENT
Install new blade by
aligning the chamfered
(beveled) corner with
the housing.
4
5
6
Slide nosepiece
over the blade.
Remove screw from the nosepiece using
a #1 Phillips screwdriver.
Slide the nosepiece off of the tool.
Remove and discard blade carefully.
Blade may be SHARP.
1
2
3
Reinstall screw.
DO NOT OVERTIGHTEN.
2
3
1
QUICK-ADJUST
EVO 9 TOOLS
1
Simply twist tension knob in either direction without moving the thumb lever. The tension will move
3 full settings; e.g. twist clockwise to advance from setting 3.5 to setting 6.5.
The EVO 9 quick-adjust tension feature allows for easy, blind tension adjustments; useful when using more
than one cable tie type during an assembly application.
Notice!
If the tension setting is near the top or bottom
of the tool’s tension range (< 3 or > 5) the quick
adjust feature will not be able to move the full
3 settings, and the tension will not set properly.
Make sure there are at least 3 full settings available
before using this feature.
TENSION LOCK-IN
Adjust tension knob to
desired tension setting.
(Can purchase T8
Star Driver part
#110-70091)
Remove screw in thumb
lever using a standard
T8 Star Driver.
Place screw in front of the
thumb lever to
lock in the setting.
3
1
2
TENSION ADJUSTMENT
Slide thumb lever forward.
While holding thumb lever
forward, rotate the tension
knob to desired tension
setting.
Release thumb lever to
lock in tension setting.
3
1
2
+/- 3
