10

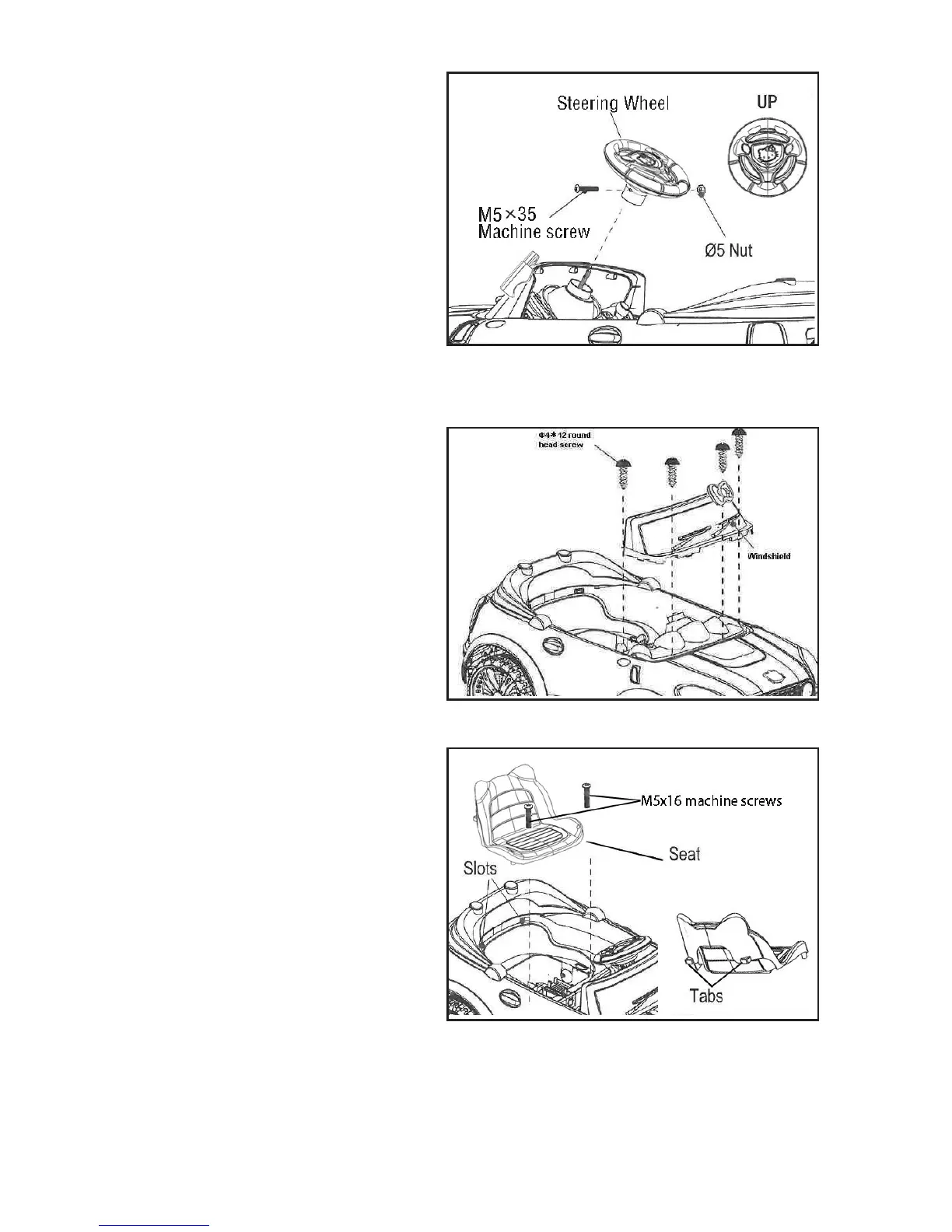

2. Steering Wheel
Assembly
• Put the vehicle body upright.
• Remove the M5x35 machine
screw and Ø5 nut from the
steering wheel.
• Insert the steering wheel to the
end of the steering column.
• Insert the M5x35 machine
screw through the steering
wheel and steering column
(make sure to align their holes),
then tighten securely.
3. Windshield Assembly
• Fit the tabs on the windshield
into the slots in the vehicle
as shown.
• Insert four Ø4x12 round head
screws and tighten with a
screwdriver.
4. Seat Assembly
• Insert the tabs on the back of
the seat into the slots in the
vehicle body.
• Insert two M5x16 machine
screws, and tighten securely
with a screwdriver.
To Next Page
