4
1. Thermostat
2. Timer
3. Pilot lamp
4. Space for connection
5. Sauna light
1 Blue
2 White
3 Red
4 Yellow
Front side Back side
7014475
314 SYOT 4 C

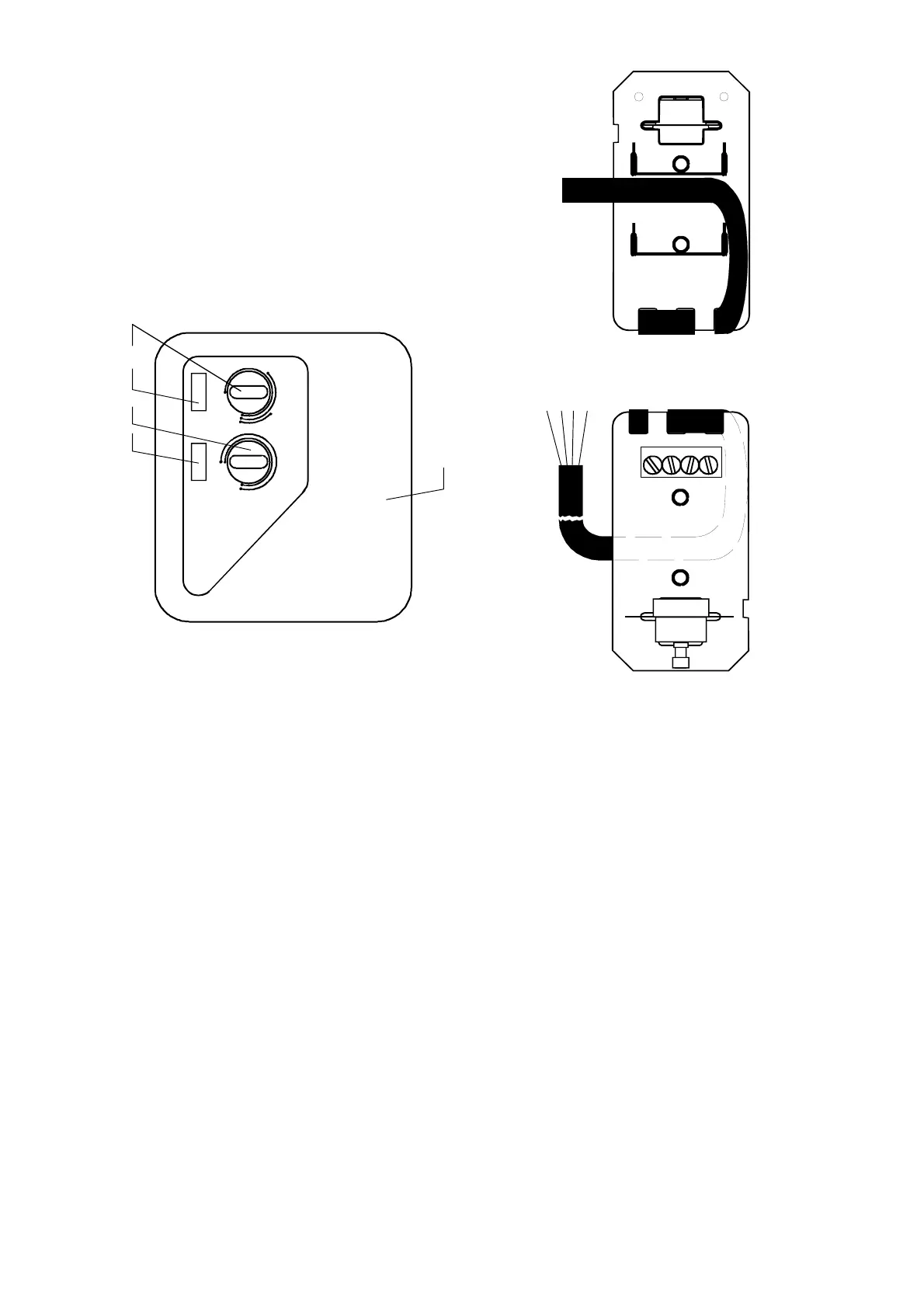

Fig 3
CONTROL PANEL
Fig 4
CONTROL PANEL 1418-2-1517-1 or 1418-2-1517-3
MOUNTING
The control panel is splash proof and may be mounted in the damp
area adjacent to the cabin. The thermostat sensor must be wall
mounted within the sauna. Please follow the measurements in the
heater instructions to avoid the possibility of scorching the wood.
TIMER
The timer control (2) which is the main on/off switch has two scales
which are set with the rocker-switch/pilot light (3). To switch on, turn
knob clockwise: Scale A provides first a 1-4 hr working band, then a
1-8 hr preset band which delays the switch on time. Scale B provides
up to 12 hr working time.
When the sauna is finished, the timer knob may be turned back to the
off position or left to switch off automatically at the end of the set
working time.
REGULATION OF TEMPERATURE
The thermostat control (1) regulates temperature. Turn clockwise to
achieve stepless increase of temperature level in the sauna. Reset-
ting the thermostat each time the sauna is used is unnecessary.
When the position which maintains the desired temperature has
been found, the knob may be permanently left at this setting.
LIGHT SWITCH
A rocker-switch (5) is provided for connections to the light fitting in the
sauna
SENSOR UNIT
The recommended mounting dimensions for the sensor are shown in
the heater instructions. A 3 metre lenght of heat- resistant cable
(170
O
C) 4 x 0,5mm - is provided. This may be extended with normal
low voltage cable Outside the sauna cabin. Connection details for
the sensor are shown in fig. 4.
LIMIT CONTROL
If the temperature in the sauna should rise too high (for example due
to a thermostat fault) the limit switch in the sensor will turn off the
power. When the fault has been rectified the switch may be reset.
3 2 5 1
