HELVAR Imagine 920 - Page 2

31:07:2012
www.helvar.com
Data subject to change without notice Doc. D004441, issue 02
Technical Data
ETHERNET
(to hub, switch
or PC)
Connections
Mains cable:
Solid core up to 4 mm
2
;
Strandedupto2.5mm
2
DALI cable:
0.5mm
2
-1.5mm2(max.300m@1.5mm
2
)
Override:
Source:3V,50mA/Sink:Max.28V,50mA
S-DIM and DMX cable:
LowlossRS485Type(multi-stranded,
twistedandshielded),3or4cores+Screen
0.22 mm
2
to1.5mm
2
, max. length 1000 mm
Ethernet:
1xRJ4510/100Mbps,Cat5Eupto100m
(AutoMDI/MDI-Xcrossover)
Power
Mains supply:
85-264VAC,45-65Hz
Power consumption:
23VA
Power circuit protection:
6 A MCB maximum.
The external supply must be protected.
Supply
DALI:
2x250mA(currentlimited)
Mechanical Data
Dimensions (mm):
9U–160(L)x100(H)x58(D)
Weight:
260 g
Mounting:
DIN Rail: keep Mains and DALI wiring
separate from Ethernet, Override, S-DIM and
DMXcables
IP rating
IP30(IP00atconnectors)
Operating Conditions
Ambient temperature:
0ºC to 40ºC
Relative humidity:
90% max., non-condensing
Storage temperature:
-10°C to 70°C
Conformity & Standards
DALI data transfer:
DALI standard IEC60929, with Helvar
extensions
EMC Emission:
EN55015
Immunity:
EN61547
Safety
EN60950
Isolation:
4kV
Environment:
Complies with WEEE and RoHS directives
DA- DA+ DA- DA+ Source Sink A 0V SC B Term A 0V SC B TermLNE
SC
Link to
terminate
Link to
terminate
LNE
SC
Link / Activity
DALI 2
DMX
Power / Status
ImagineImagine
920920
Imagine Router
Dali 1(85 to 264 VAC) Dali 2 Override SDIM DMX
DA- DA+ DA- DA+ Source Sink A 0V SC B Term A 0V SC B TermLNE
SC
Link to
terminate
Link to
terminate
LNE
SC
Link / Activity
DALI 2
DMX
Power / Status
ImagineImagine
920920
Imagine Router
L N E
SC
(85 to 264)VAC
MAINS SUPPLY
DA-
DA+
DALI 1
SOURCE
OVERRIDE
S-DIM
A
0V
SC
B
TERM
SINK
DA-
DA+
DALI2
DMX
A
0V
SC
B
TERM
Dali 1(85 to 264 VAC) Dali 2 Override SDIM DMX

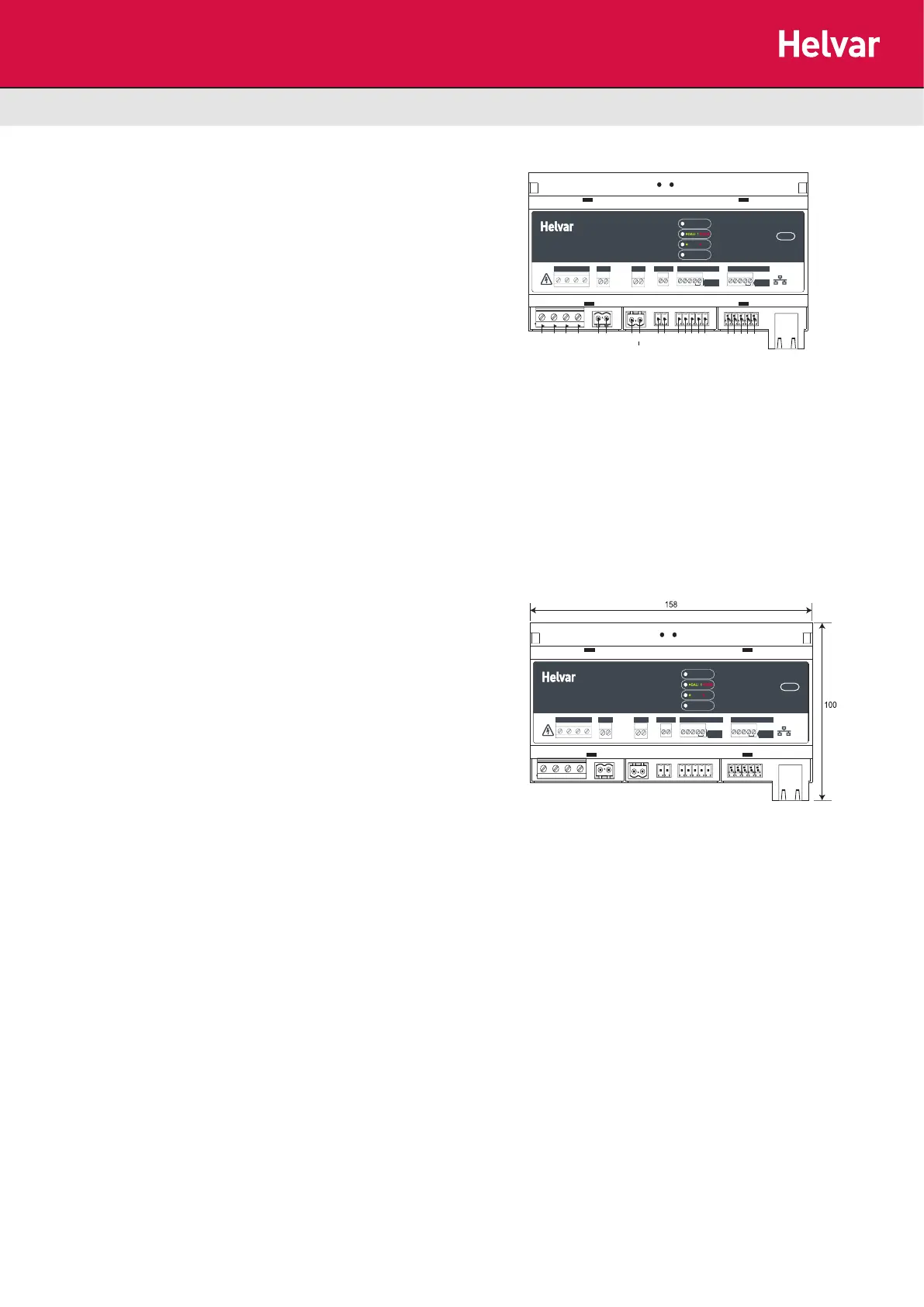

Dimensions
Inputs / Outputs
