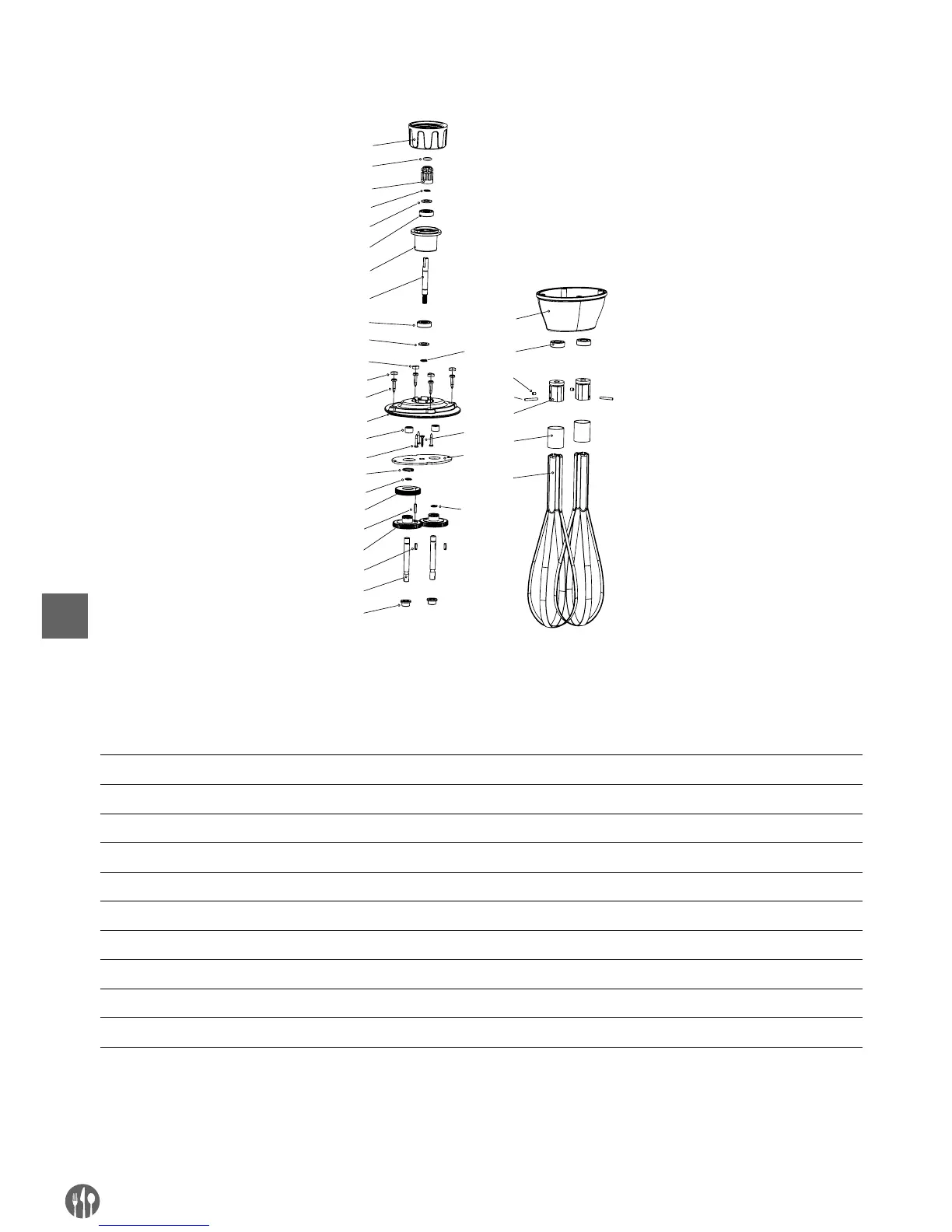

Whisks (Optional) for model 222171 & 222188
3
4
5
6
7
8
5
6
10
11
13
14
15
4
1
6
17
18
19
20
21
22
23
24
25
26
27
28
12
9
29
4
4
30
1
2
Part list – whisk (optional): model 222263
Part
No.
Part Name Part
No.
Part Name Part
No.
Part Name
1 Fastening sleeve 11 Housing screw 21 Shaft sleeve
2 Spline sleeve seal ring 12 Upper cover 22 Lower cover
3 Spline sleeve 13 Needle bearing 23 Oil sealing
4 Ø8 Snap ring 14 Screw 24 M4x5 Screw
5 Oil sealing 15 Ø16 Snap ring 25 Cylindrical pin
6 Bearing 16 Helical gear bearing 26 Fixed board
7 Connect sleeve 17 Cylindrical pin 27 Steel ring
8 Helical gear bearing 18 Straight gear 28 Steel bar
9 Screw plunger 2 19 Key 29 Baffle plate
10 Screw plunger 1 20 Output axis 30 Screw
