Operating Instructions Elevator Buffers LP Page 11 Edition 3.3.1 EN of 03.04.2017

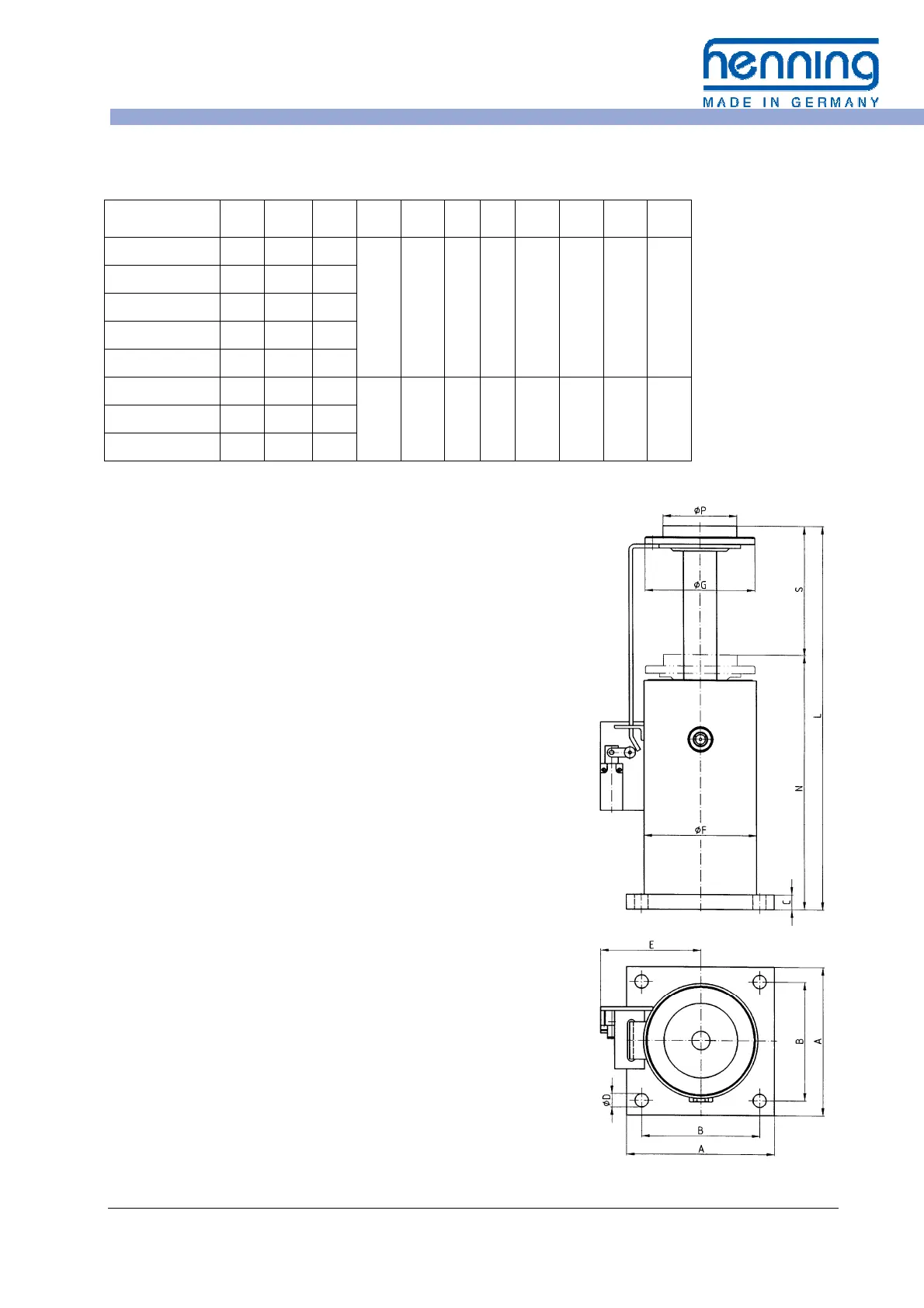

Dimensions Type LP 40 / 50 with linear slide:
S L N A B C D E F G P
LP 40 x
80 80 305 225
160 120 20 18 116 115 130 80
LP 40 x 120 120 385 265
LP 40 x 175 175 495 320
LP 40 x 275 275 715 440
LP 40 x 430 430 1065
635
LP 50 x 425 425 1065
640
200 160 20 18 135 155 150 100 LP 50 x 695 695 1665
970
LP 50 x 950 950 2235
1285
All dimensions in mm.
All data subject to modifications!
Hydraulic oils and allowed ambient temperatures
during elevator operation:
a) buffer standard model:
Hydraulic oil DIN 51524-2 HLP respective ISO 6743/4 HM
viscosity ISO VG 46 for ambient temperatures from
-10 °C up to +50 °C
b) buffer with low temperature design (upon request):
Hydraulic oil DIN 51524-3 HVLP respective ISO 6743/4 HV
viscosity ISO VG 22 for ambient temperatures from
-20 °C up to +40 °C
c) Special designs with biodegradable or flame-retardant
hydraulic fluids (on request):
Various special fluids are tested for the hydraulic buffer LP and
released for use.
Please note the special marking of the buffer and the additional
inserts for order documentation in the individual case!
