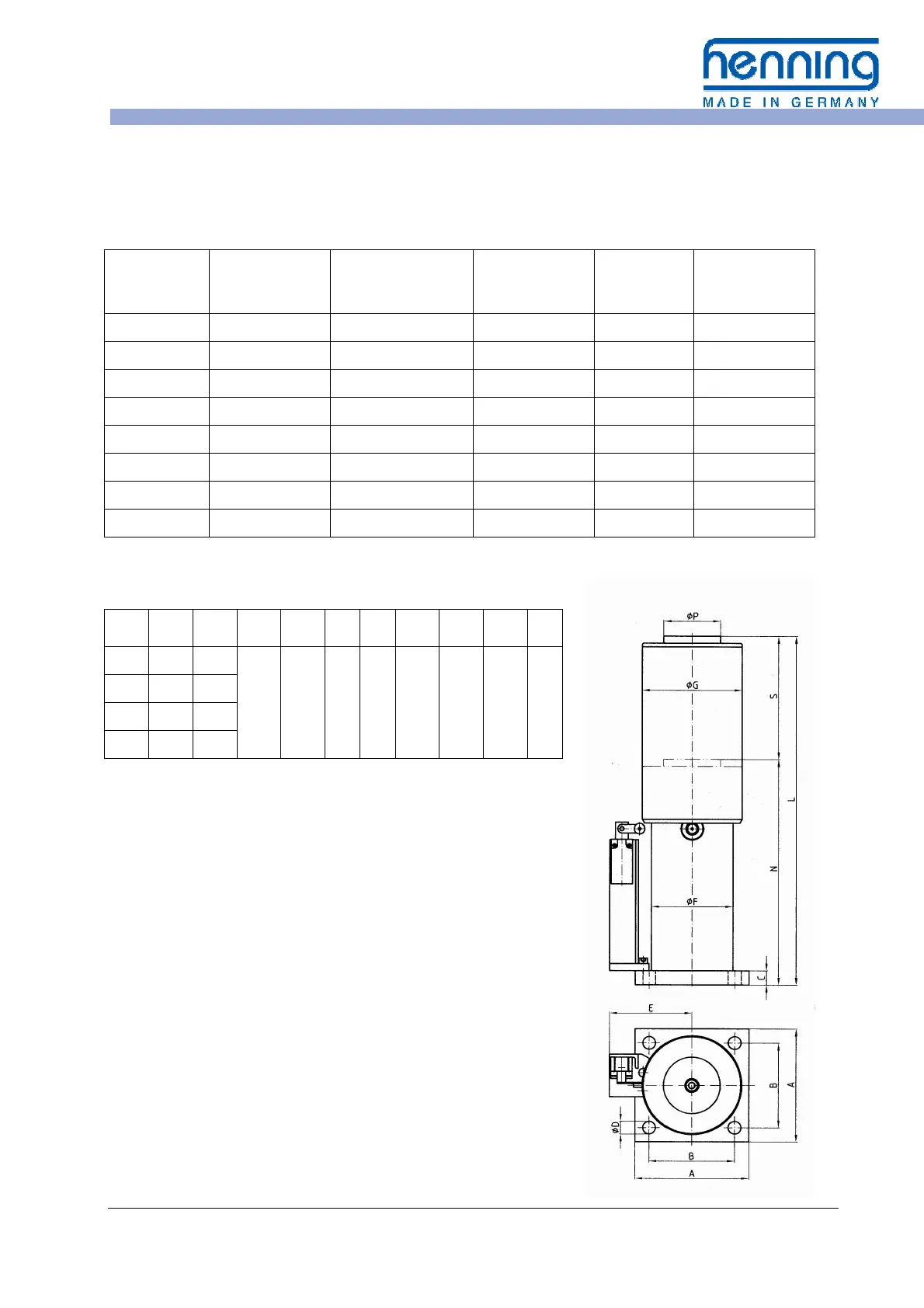

Technical Data:
Size x Stroke
s [mm]
Rated speed
max.
v [m/s]
Impact mass
min. - max.
m [kg]
Impact energy
max.
E [kNm]
Buffer force
max.
F [kN]
Weight with oil
filling
G [kg]
LP 40 x 80 1,0 450 - 3200 4,96 90 14
LP 40 x 120 1,3 450 - 3200 7,44 90 16
LP 40 x 175 1,6 450 - 3200 10,9 90 19
LP 40 x 275 2,0 450 - 3200 17,1 90 24
LP 40 x 430 2,5 450 - 3200 26,7 90 32
LP 50 x 425 2,5 500 - 4500 37,4 130 47
LP 50 x 695 3,2 500 - 4500 61,1 130 68
LP 50 x 950 3,7 500 - 4500 83,5 130 86
Dimensions Type LP 40 with protection tube:
S L N A B C D E F G P
80 305 225
160 120 20 18 112 115 140 80
120 385 265
175 495 320
275 715 440
All dimensions in mm.
All data subject to modifications!
