Unwrap the received parts and make sure nothing
is missing.
It should consist of:
-
A 1
One pole (trapeze bar tube)
-
A 2
Two universal connectors
parts.
e universal connector is disassembled, into six
Attach the universal connector
A 2
to the Gripo
B 2
to the pole and then threading part
B 1
through, and
attaching the remaining parts
B 3
to
B 6
.
Angle part
B 4
so that the accessories fit.
Find the desired height and tighten so that the
universal connector holds, but loosely enough that
the accessories can be threaded on as described
in the next step.

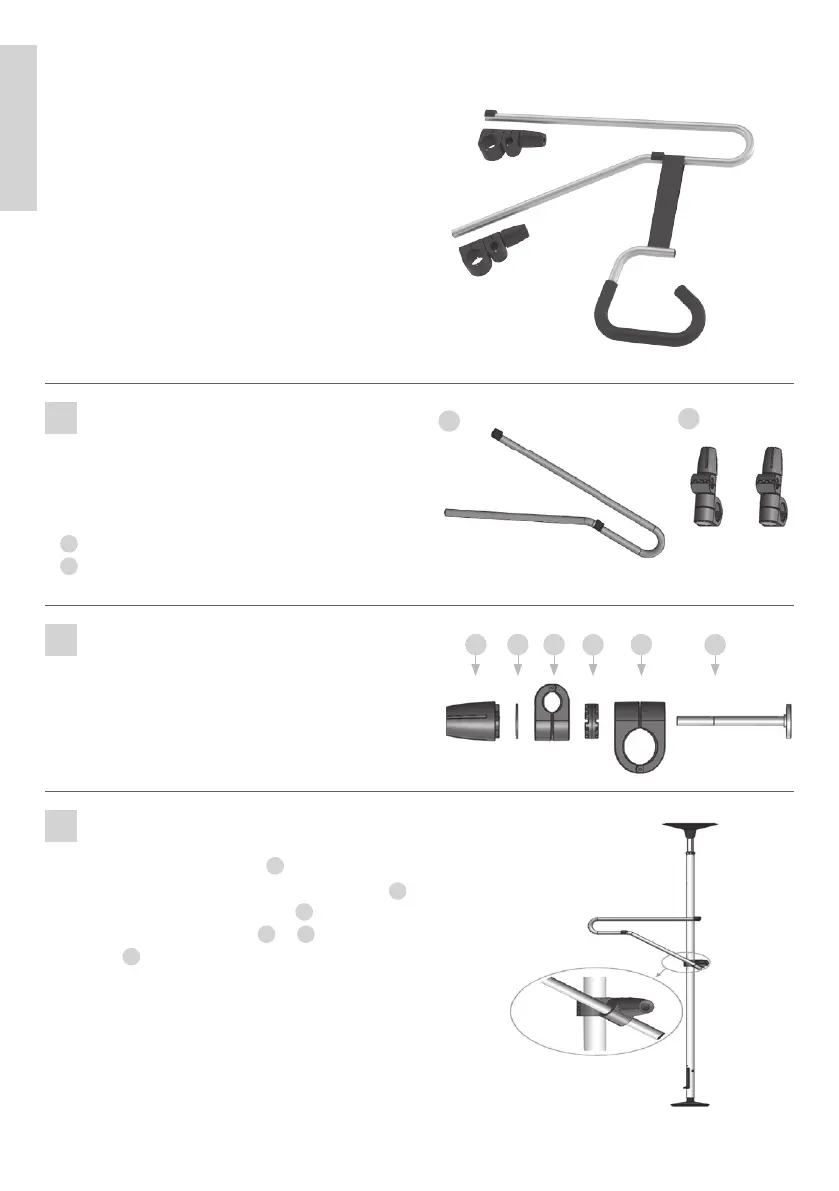

TRAPEZE BAR
Art. No. 35148
35196
A
B
C
B 6 B 5 B 4
B 3
B 2
B 1
A 2
A 1
Assembling the
pole. is is done by attaching the largest clamp
