ADLY MOTO 2-4
CHECK AND ADJUST

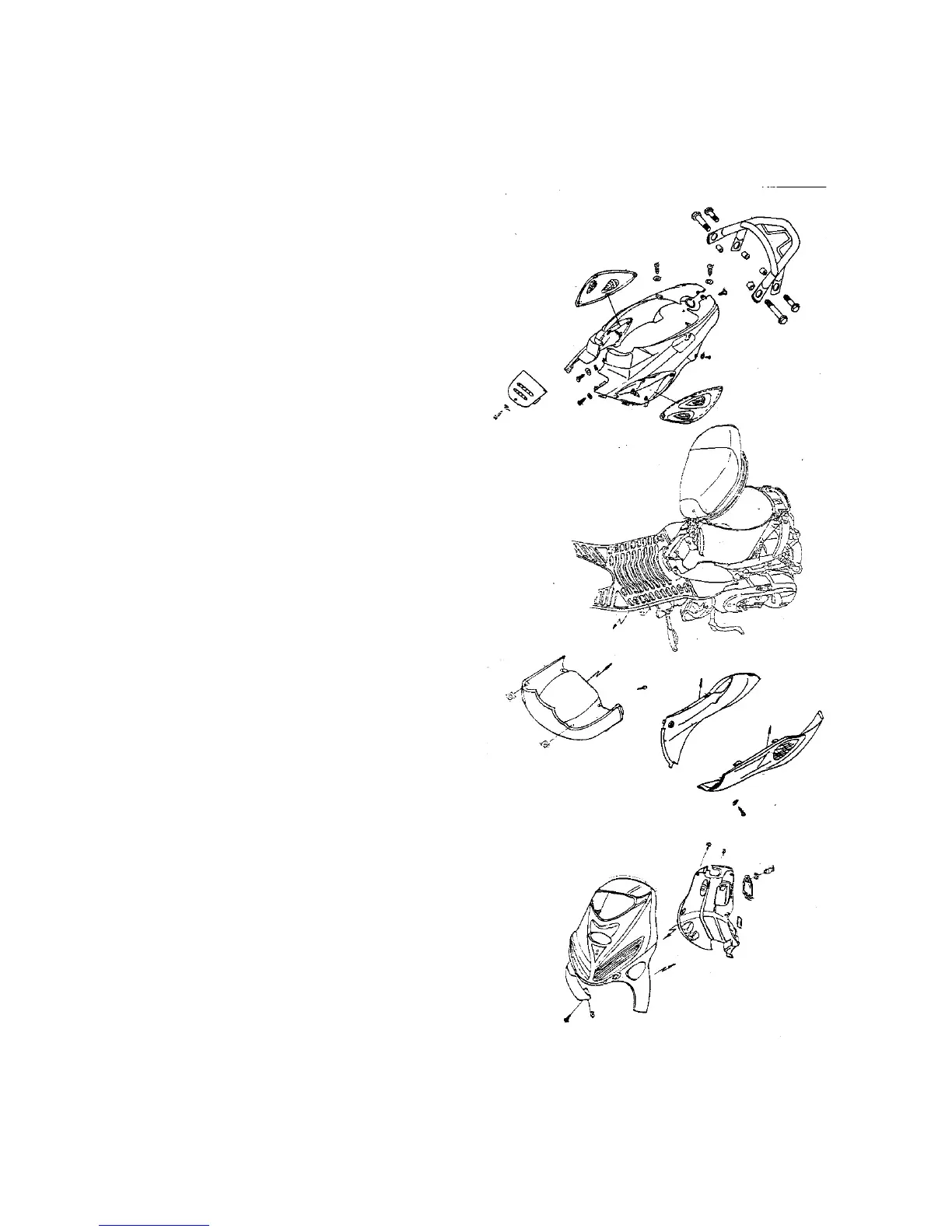

Disassembly of External Parts
• Remove the external parts for check
and adjustment.
• Remove 4 hex washer face bolts,
4 space tubes , and then remove
luggage carrier.
• Remove 12 self-tapping screws and 2
pan flat bolts.
• Remove central cover ,L/R side cover,
decoration strip and cowling.
• Install with the reverse sequence.
WARNNING:
6 Do not break the union of body and
pedal.
6 Before locking screws , please
confirm the matching correct of all
parts.
• Front cover.
• Remove 3 pan flat bolts , 1 hex bolt.
• Remove 12 self-tapping screws.
• Disconnect the light connectors.
• Install with the reverse sequence.
WARNNING:
6 Do not damage & break the joint of
inner body and front damper.
6 Before locking screws , please
confirm the matching correct of all
parts.
