ADLY MOTO 2-5
CHECK AND ADJUST

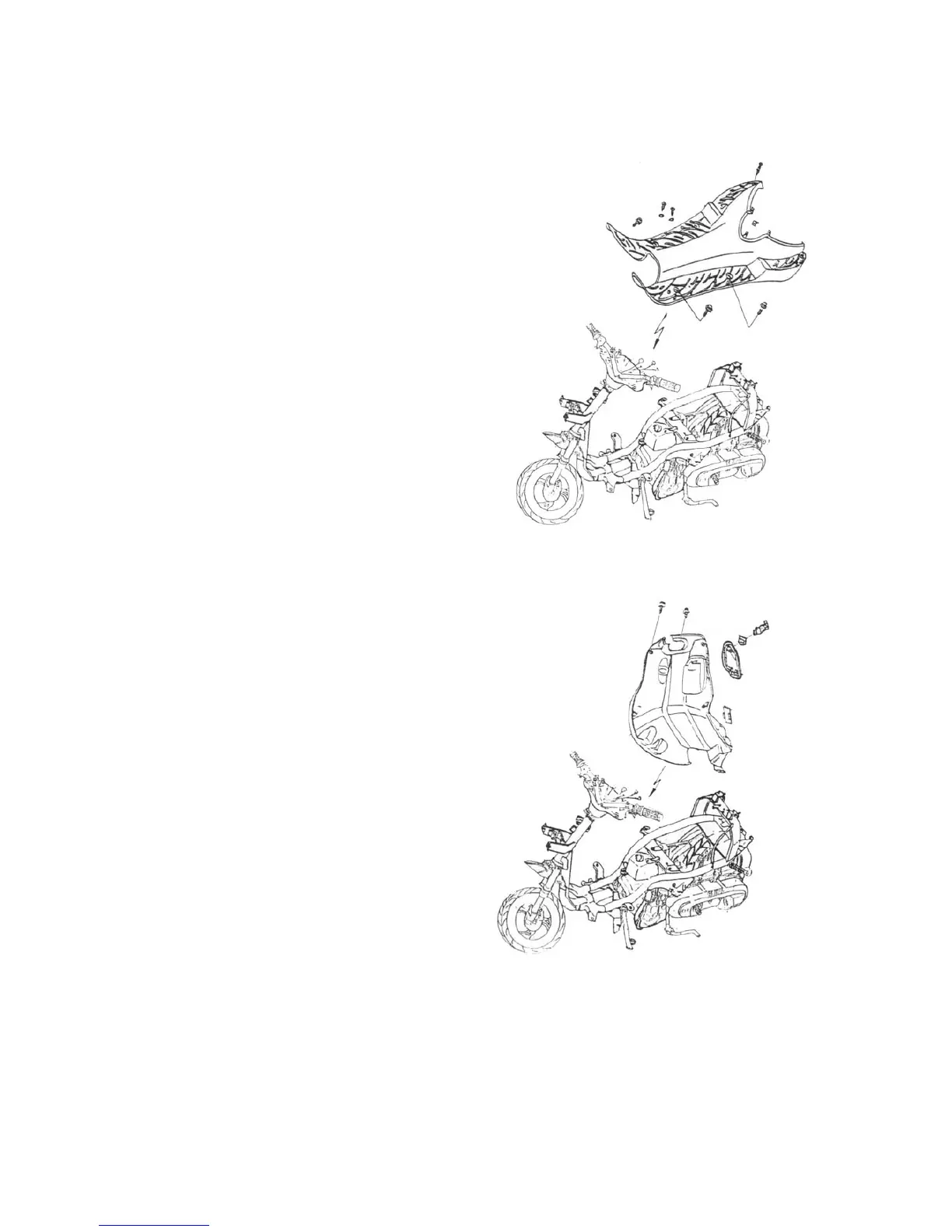

Disassembly of Pedal
• Remove L/R body cover.
• Remove 4 bolts, 6 self-tapping screws
2 pan flat bolts.
• Separate the joint with luggage case
(claw & groove)and remove the pedal
• Install with the reverse sequence.
WARNNING:
6 Installing to the luggage box after
composing confirming the pedal with
the joint of luggage case correctly.
Disassembly of Luggage Case
• Remove front fender.
• Disconnect the light connectors.
• Remove power switch cap.
• Remove edge nut on luggage case.
• Install with the reverse sequence.
WARNNING:
6 Going on the installation operation
after jointing correctly the luggage
case and front fender.
