Air Control Handle:

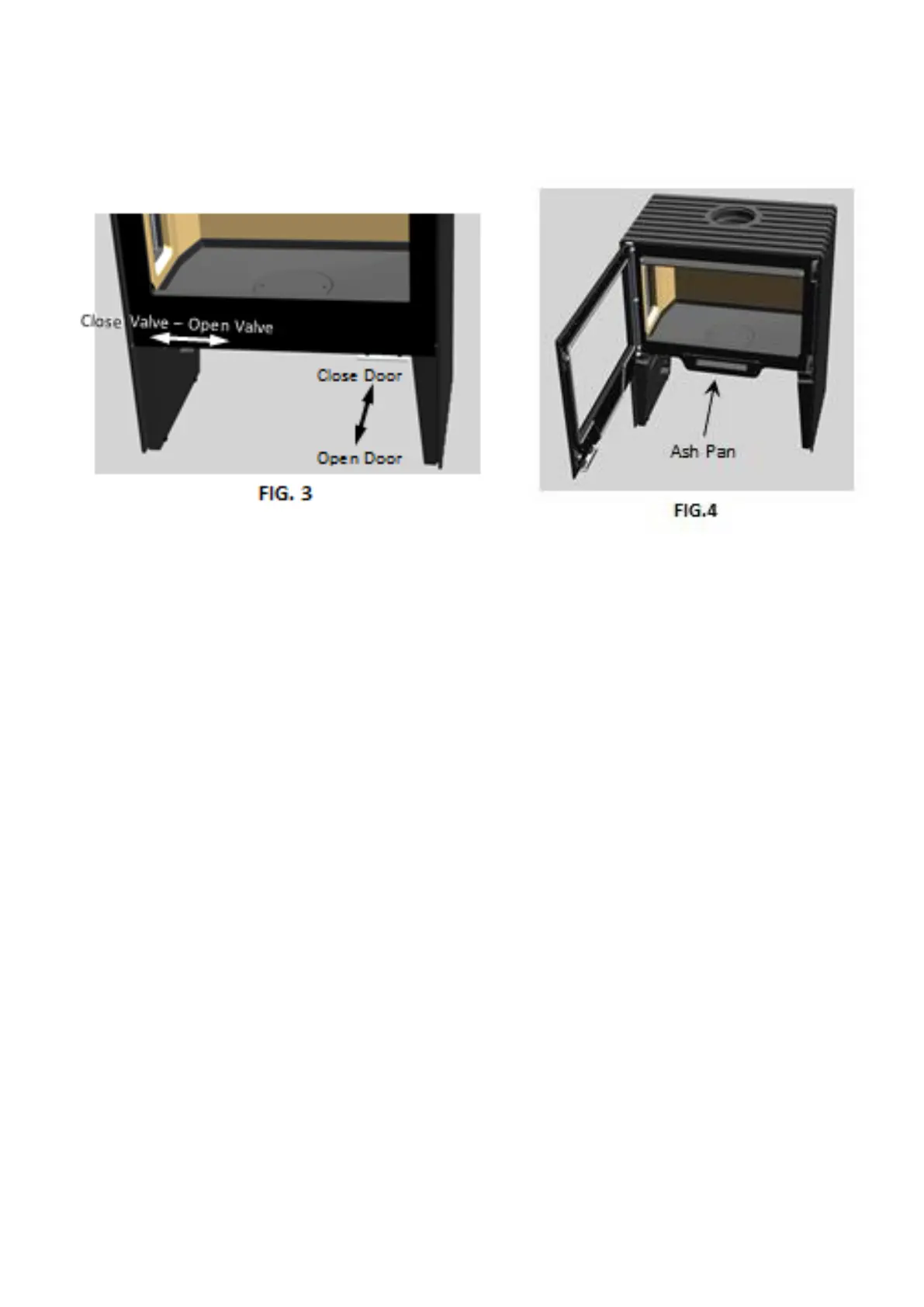

These are located below the door on the left hand side (Fig.3).
When lighting the heater have the control pushed all the way to the right. Once the fire is alight and a
good ash bed has been built up, adjust the valve to the left to prevent excessive air intake, which will
cause excessive combustion levels and temperatures.
An intermediate position is usually the ideal setting, depending on the quality of the draw of the chimney
installed and on the type of fuel being used (hard wood) (Fig. 3).
Ash pan - Very important!
Only handle the ash pan when the stove is cold.
Always avoid opening the ash-pan if your stove is in operation.
To clean the ash, lift the solid base plate located at the bottom of the stove.
Use a brush and shovel to sweep the ash into the ash pan. Remove the ash-pan from the front (Fig. 4).
To remove the ash-pan from its position, pull the handle gently to release it. Once you have emptied the
ashes, return the ash pan to the ash drawer, pushing it into place to create a seal.
Do not forget to replace the solid cover in the bottom of the fire box.
The heater can only be run with the Ash pan in position, and pushed back sealing the ashpan and the
opening with the insulating tape included.
