hergom Glance L - 4 - INSTALLATION

7
4 - INSTALLATION
The Safety-Clearances in below are only valid for installions with a solid decorative 8” flue shield around
the active flue.
The second option is with teh additional Rear heat-shield attached to the unit (optional accessory) and
the third option also has the additional flue deflector shield included between the first 900mm between
the active 6” flue and the solid decorative 8” (200mm).

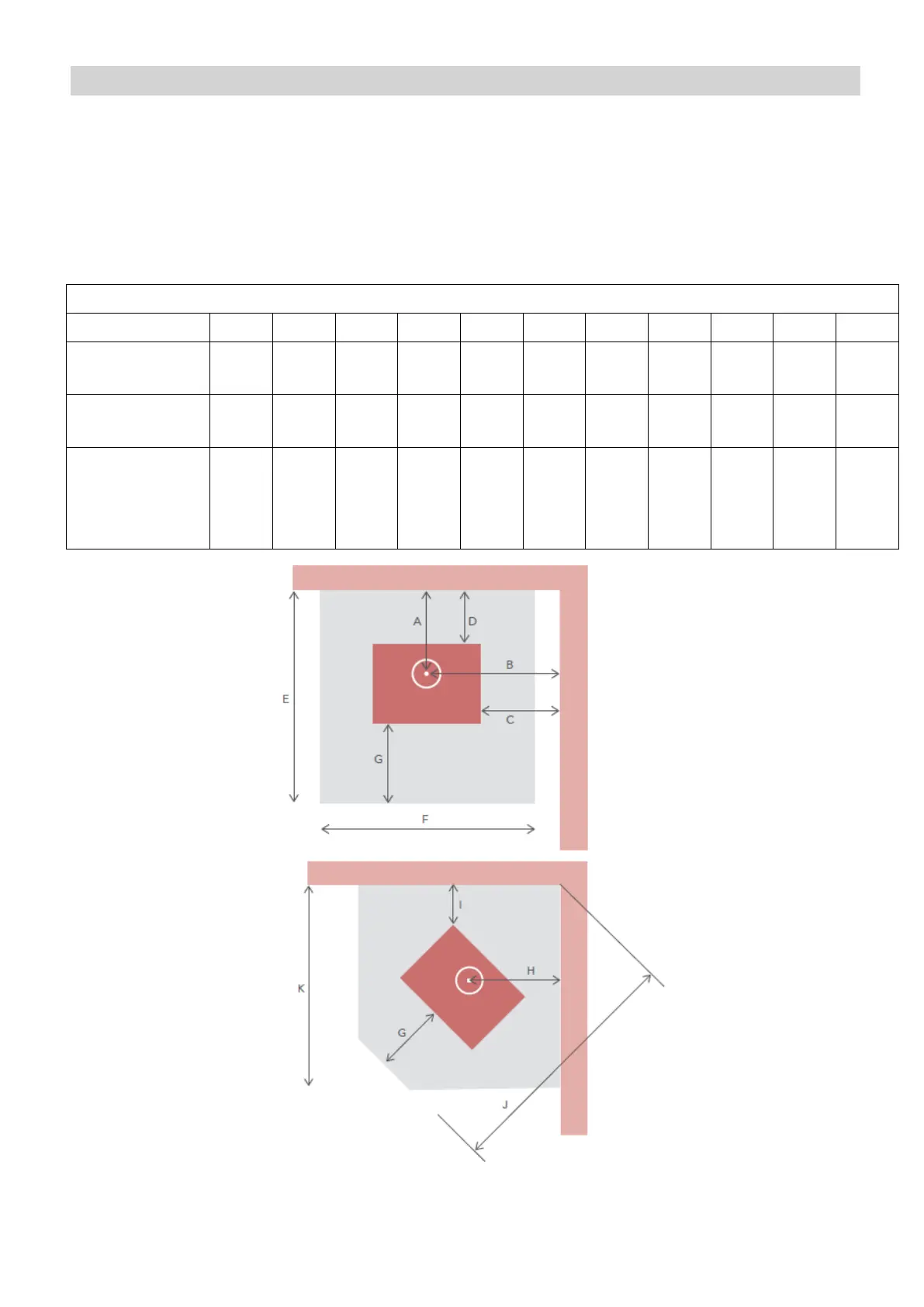

SAFETY DISTANCES
Dimensions per Fig 4 and 5 below. All Dimensions in mm
A
B
C
D
E
F
G
H
I
J
K
No Firebox
Shield
560 750 400 400 1260 970 450 510 150 1422 1200
Firebox rear
heat shield
460 825 475 300 1160 970 450 N/A N/A N/A N/A
Firebox rear
heat shield and
Extra flue
deflector
335 825 475 175 1035 970 450 N/A N/A N/A N/A
Fig 4.
Fig 5.
The minimum thickness of the hearth for insulation is equivalent to 18mm thick cement sheeting (ie Bellis
board or FC sheeting) with thermal resistivity of 0.01m2.K/W per 9mm, and a top surface with Heat
resistance to 600 degrees C.
