36
A
B
A
B
Spoke wheel version
Cast wheel version

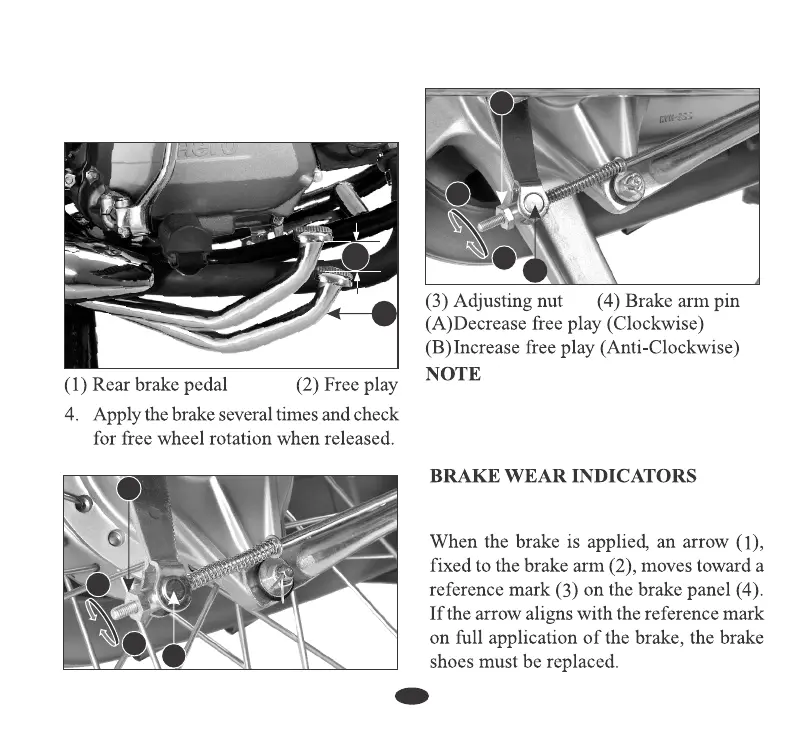

If proper adjustment cannot be obtained
by this method, visit your Authorised
Hero MotoCorp workshop.
Make sure that the cut-out on the adjusting
nut is seated on the brake arm pin (4) after
the final adjustment has been made.
(Spoke wheel version)
2
1
3
4
3
4
