35

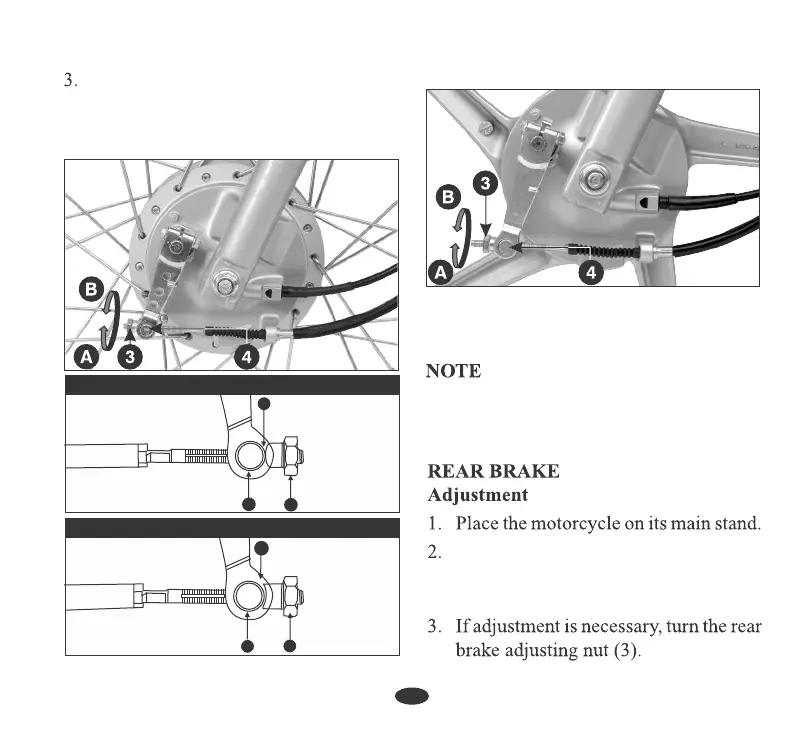

(3) Adjusting nut (4) Brake arm pin (A)
Decrease freeplay (Clockwise) (B)
Increase freeplay (Anti-Clockwise)
Apply the brake several times and
check for free wheel rotation when
released.
Spoke wheel version
Cast wheel version
Measure the distance brake pedal (1)
moves before the brake starts to take
hold. Free play (2) should be 20-30 mm.
If proper adjustment cannot be obtained by
this method, visit your Authorized Hero
MotoCorp workshop.
1
A
2
(A) CUT-OUT NOT SEATED
(1) Adjusting nut (2) Brake arm pin
1
B
2
(B) CUT-OUT SEATED
