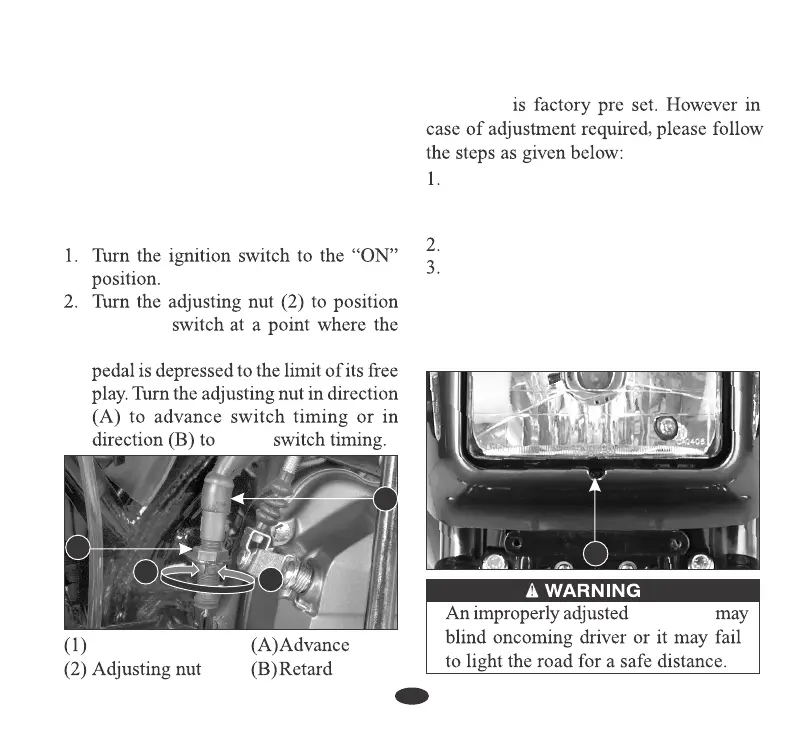

Adjust the headlamp beam vertically
by rotating the screw. Rotate the screw
clockwise for downward adjustment
an d an ti clo ckw ise fo r up wa r d
adjustment of headlamp beam.
Place the motorcycle on level ground.
Headlamp adjustment is done by the
headlamp adjuster screw (1) located
below headlamp.
2
1
STOP LAMP SWITCH HEADLAMP ADJUSTMENT
stop lamp
Stop lamp switch
Headlamp
headlamp
The stop lamp switch (1) must be adjusted
so that stop lamp will glow when rear
brake is applied. Rear brake free play
(page 36-37) should be adjusted before
performing stop lamp switch adjustment.
The procedure for adjusting stop lamp
switch is as follows:
stop lamp will glow just before the brake
1
