HEWITT 4600 - Page 4

J
A
D
I
H
G
F
E
B
C
Part# L1CHS1925
5/16" x 192" Stainless
Cable
Part# L1CHS2011
1/4" x 201" Stainless
Cable
Part# L1CHS1925
5/16" x 192" Stainless
Cable
Part# L1CHS255
5/16" x 25' Stainless
Cable
PAGE 4

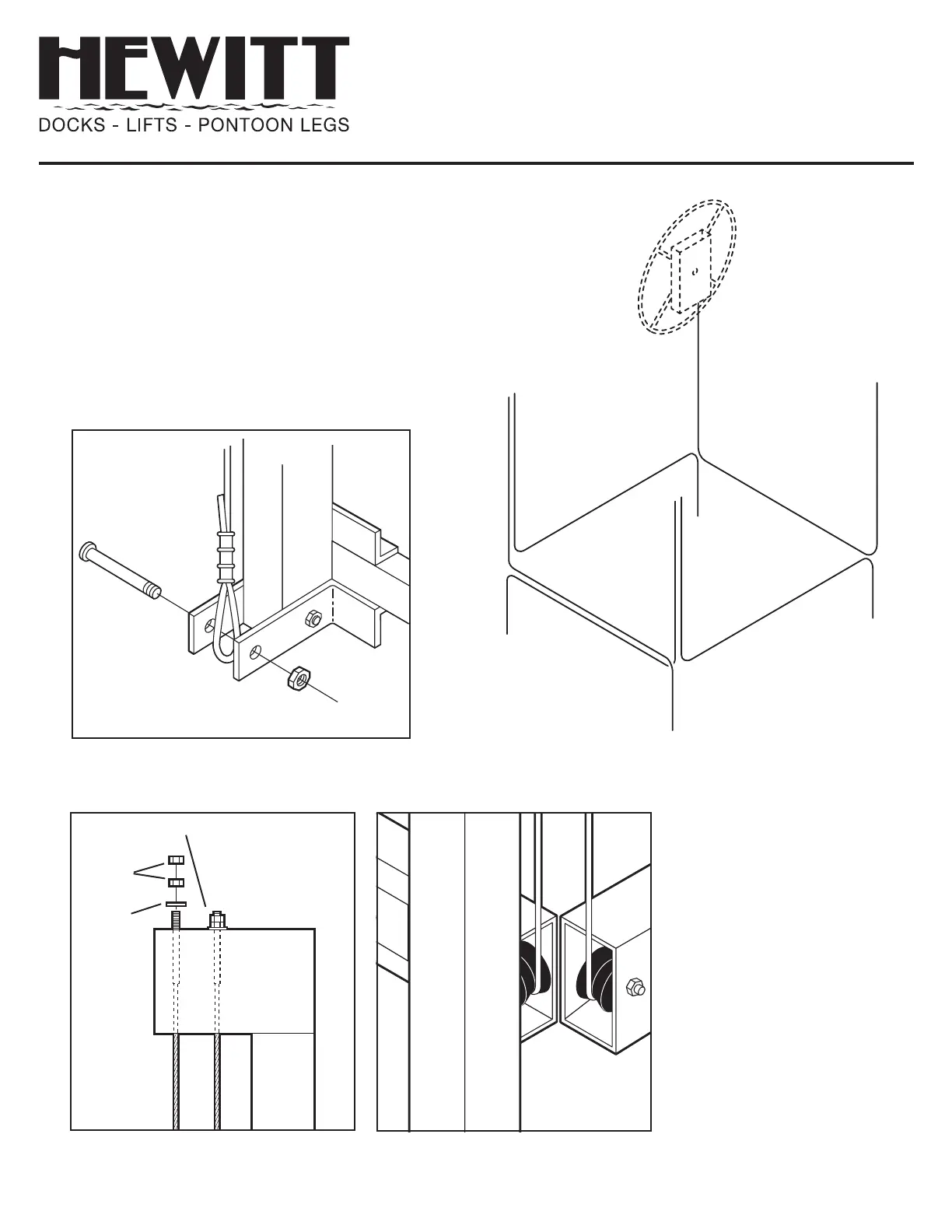

4600 REGULAR VERTICAL LIFT
CABLE ASSEMBLY INSTRUCTIONS
1. Route cables as shown.
2. Attachcableendsidentiedindrawingas
A, B, C, and D to bottom bracket on corner
uprights. (see inset 1).
3. Attach cable ends E, F, G and H to top
bracket on corner uprights. (see inset 2).
4. Attach cable end J to winch drum.
INSET 1
CORNER POST 3 and 4
1/2" NUT
1/2" x 2-1/2"
BOLT
CORNER DETAIL
1/2"
STEEL NUTS
1/2" STEEL NUTS
& 1/2" WASHER
INSET 2
1/2"
WASHER
