PAGE 4
4600 X-WIDE VERTICAL LIFT

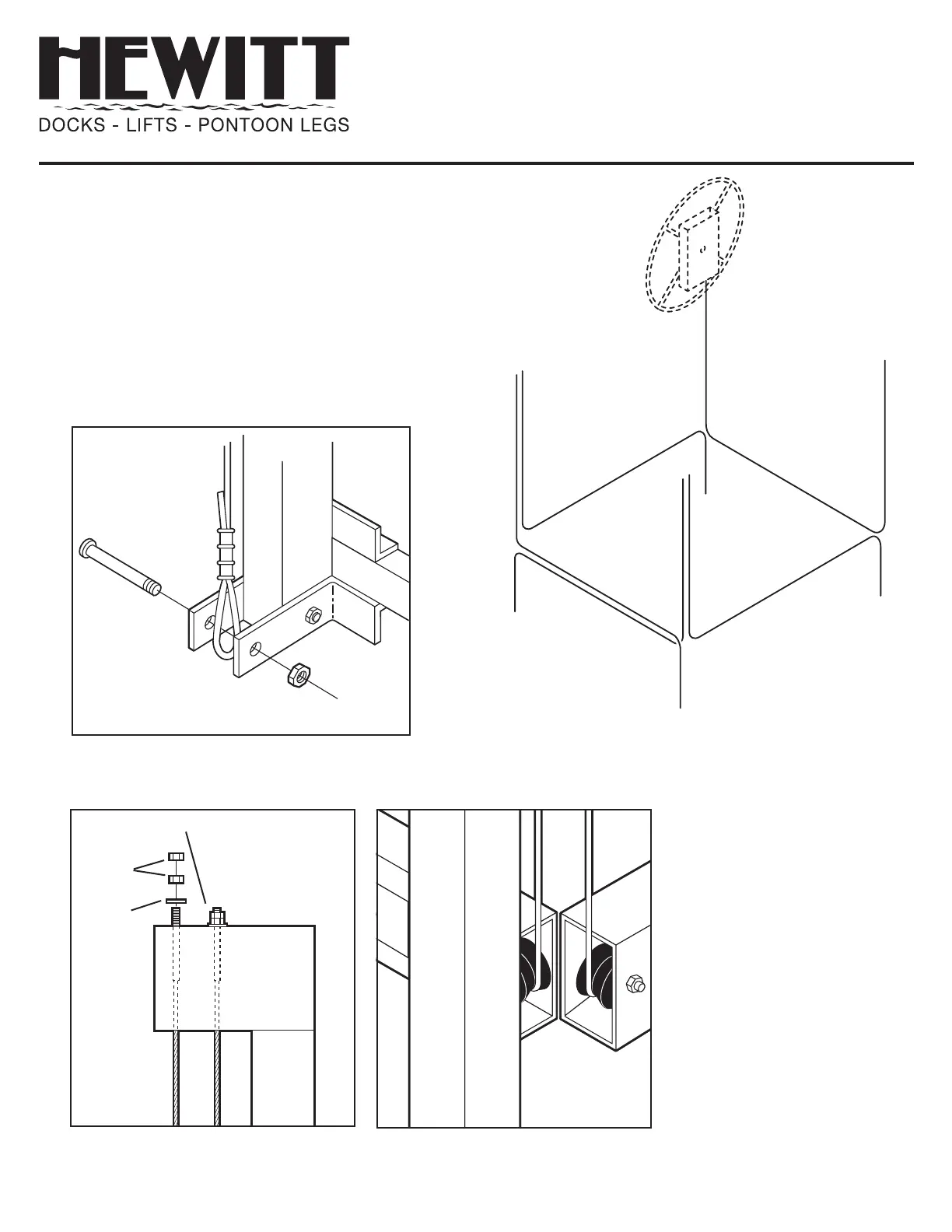

CABLE ASSEMBLY INSTRUCTIONS
1. Route cables as shown.
2. Attachcableendsidentiedindrawingas
A, B, C, and D to bottom bracket on corner
uprights. (see inset 1).
3. Attach cable ends E, F, G and H to top
bracket on corner uprights. (see inset 2).
4. Attach cable end J to winch drum.
5. Install corner roller and secure with 1/2" x 3-1/2"
bolt and 1/2" Nylock nut. (see inset 3 & note).
INSET 1
CORNER POST 3 and 4
1/2" NUT
1/2" x 2-1/2"
BOLT
CORNER DETAIL
1/2"
STEEL NUTS
1/2" STEEL NUTS
& 1/2" WASHER
INSET 2
1/2"
WASHER
J
A
D
I
H
G
F
E
B
C
Part# L1CHS1925
5/16" x 192" Stainless
Cable
Part# L1CHS2071
1/4" x 207" Stainless
Cable
Part# L1CHS1925
5/16" x 192" Stainless
Cable
Part# L1CHS265
5/16" x 306" Stainless
Cable
