FULLY ASSEMBLED

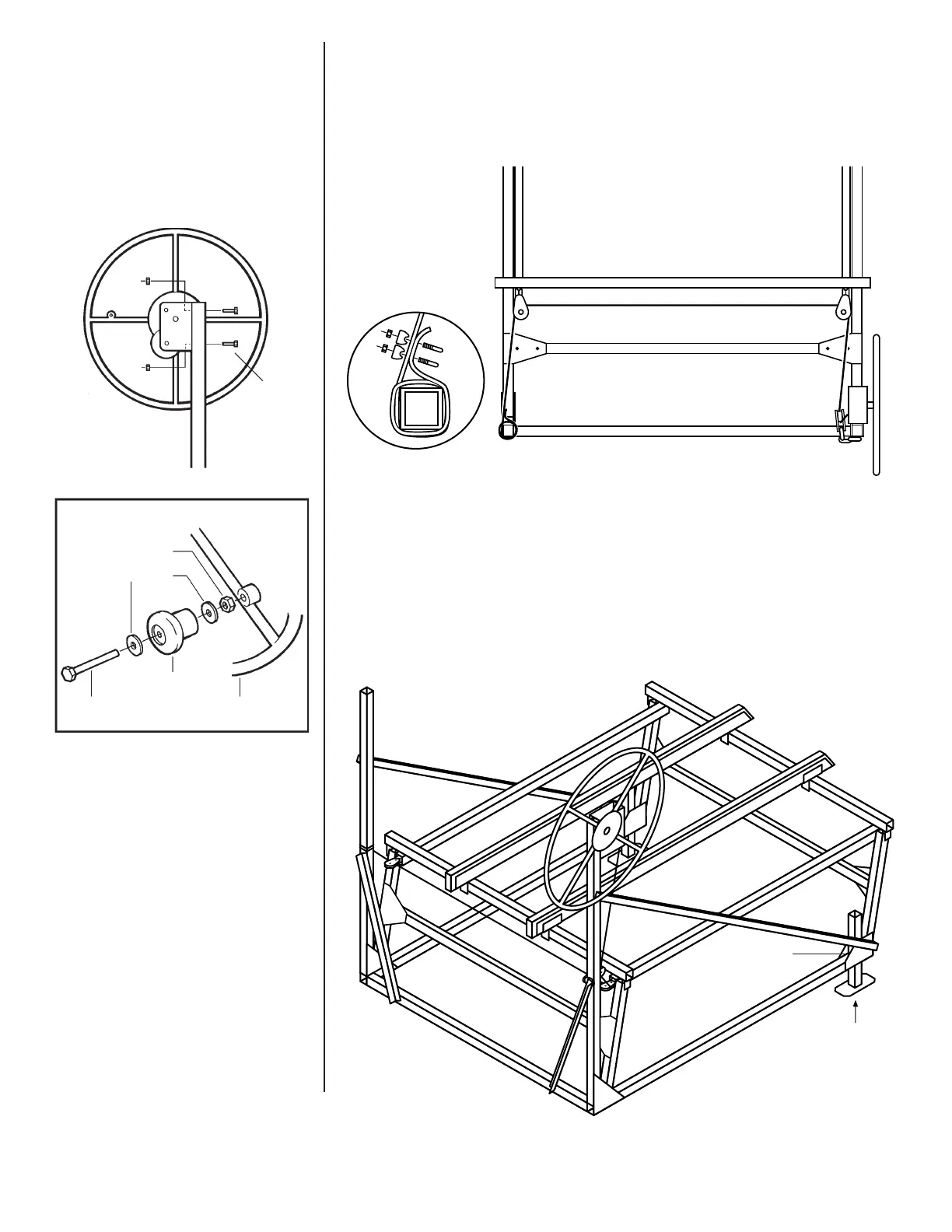

STEP 7
Install winch using two 3/8" x 2-1/2"
bolts and nuts. (Diagram shows winch
installed on right side. For left side
installations, turn winch upside down).
Bolt winch wheel to winch and install
spinner knob. Spinner knob should
turn freely on bolt.
WINCH WHEEL
SPINNER KNOB
3
/
8
" X 2
1
/
2
" BOLT
3
/
8
" NUT
3
/
8
" WASHERS
STEP 8
Run cable down from winch and through pulley (1) mounted on Corner Post.
Run cable through pulley (2), over to opposite pulley (3) and secure at opposite
Corner Post with two cable clamps (4) Note: cable should be wrapped around
the upright two times before securing. If winch is mounted on the other side of
the lift, simply route cable in reverse order.
1
23
4
TOP VIEW
STEP 9
Tip up back of lift and insert leveling legs. Set screws for rear leveling legs are
inserted into the welded nuts located between the side plates on the Long
Bases. Front leveling legs are also available as an option.
3
/
8
" x 2-1/2"
Bolts
1
/
2
" x 1
1
/
2
"
Set Screw
(each side)
PAGE 3
