HEX Alton - Page 14

Assembly Guide
12
FK5
FK1
LOOSELY ATTACH AT LOCATIONS INDICATED ONLY.
7B

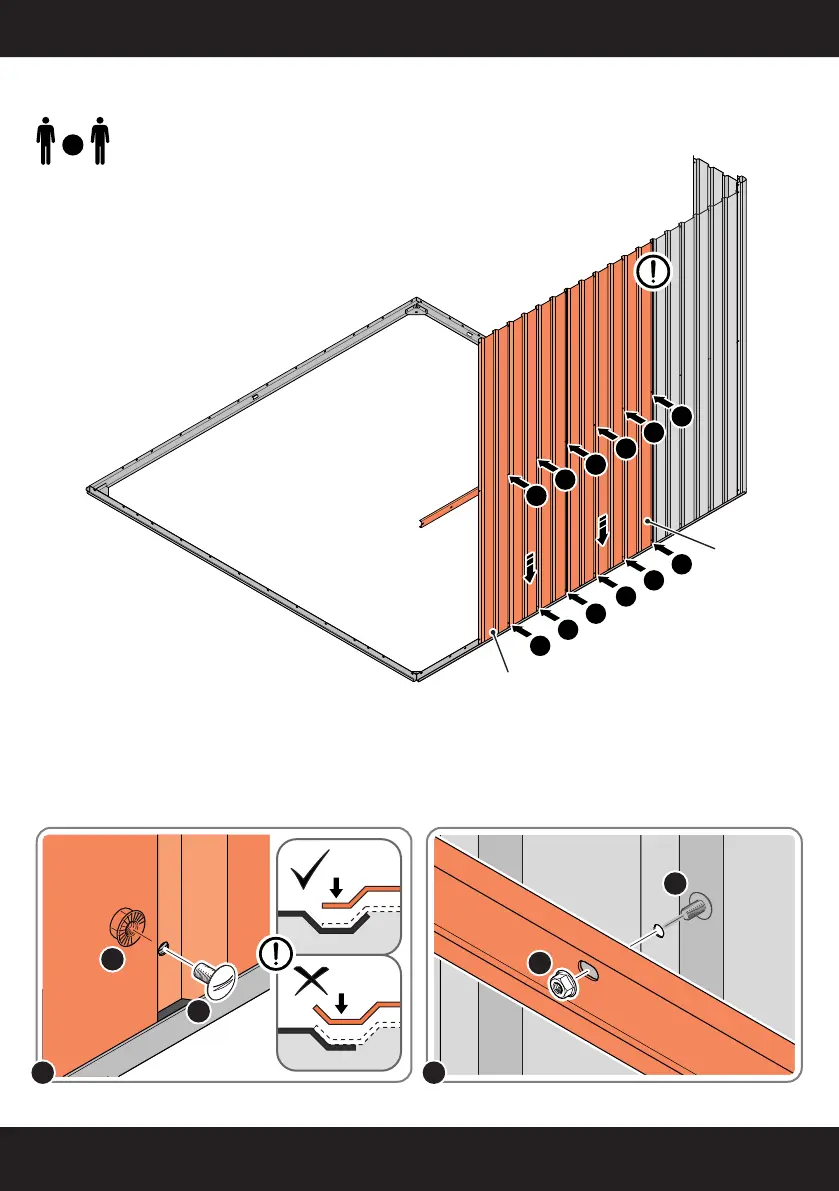

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 7
x2
7B
7B
7B
7B
0205-12
0205-12
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
7A
7A
7A
7A
7A
7A
7A
7B
7B
