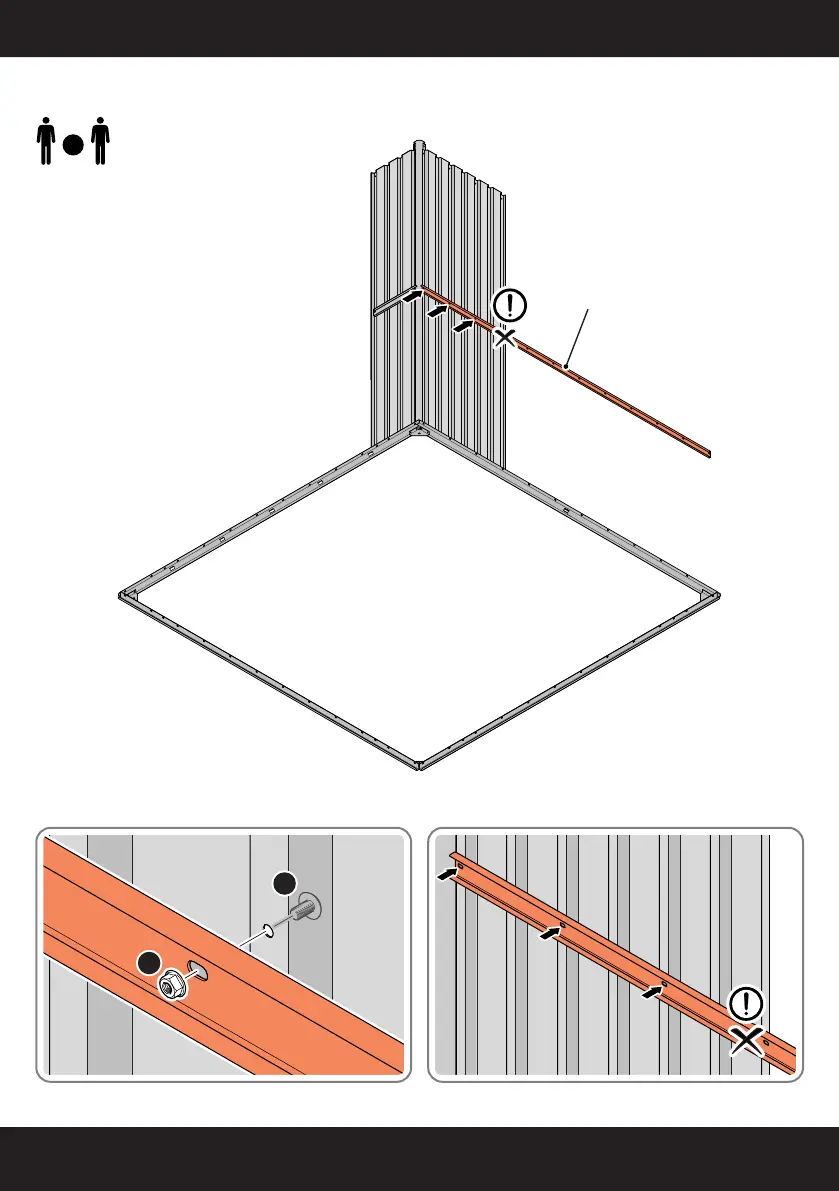

LOCATE AND LOOSELY ATTACH MID CENTRE BRACE 0205-09 AS
SHOWN AT x3 LOCATIONS INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
LOCATE AND LOOSELY ATTACH MID CENTRE BRACE 0205-09.
ASSEMBLY STAGE 6
x2
FK5
FK1
0205-09
