HEX Alton - Page 12

Assembly Guide
10
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
5B

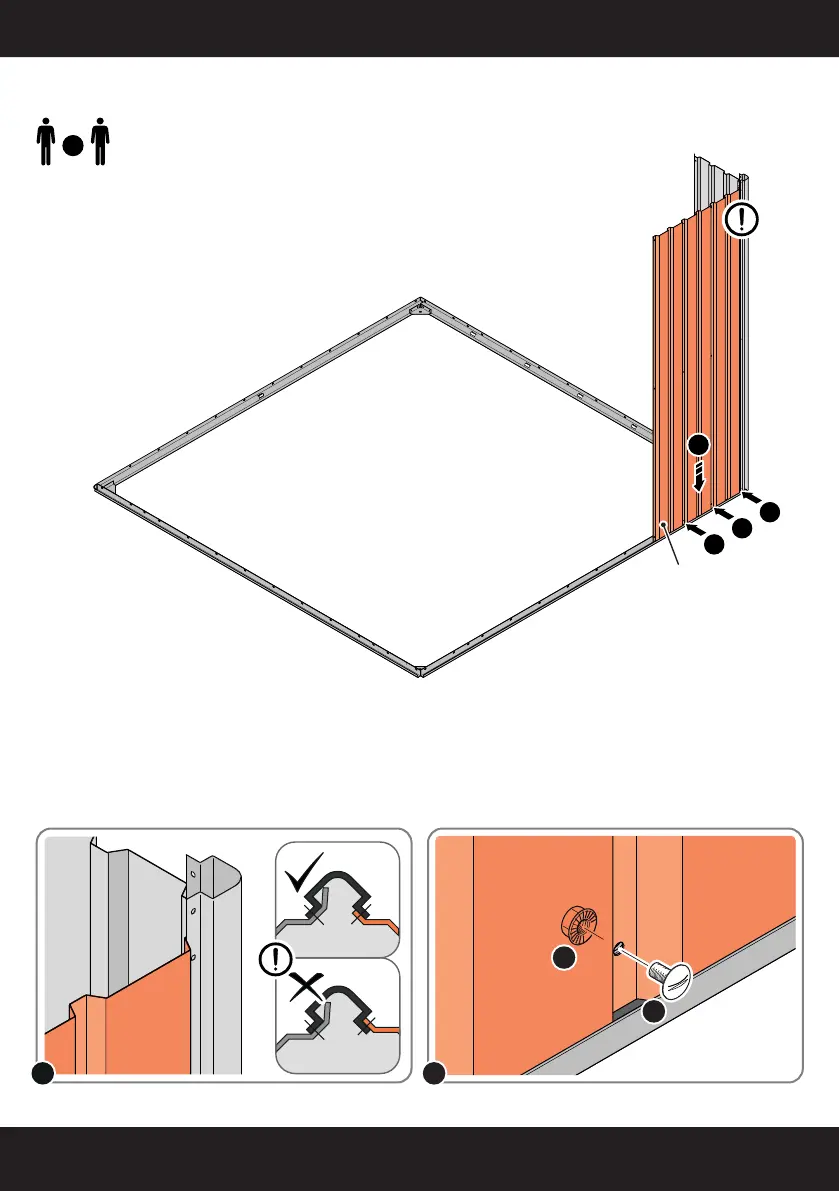

LOCATE FIRST WALL PANEL 0205-12 (1850 x 625mm) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 5
x2
FK5
0205-12
5A
5B
5B
5B
5A
OUTSIDE
INSIDE
OUTSIDE
INSIDE
