HEX Alton - Page 11

Assembly Guide
9
ASSEMBLY STAGE 4
x2

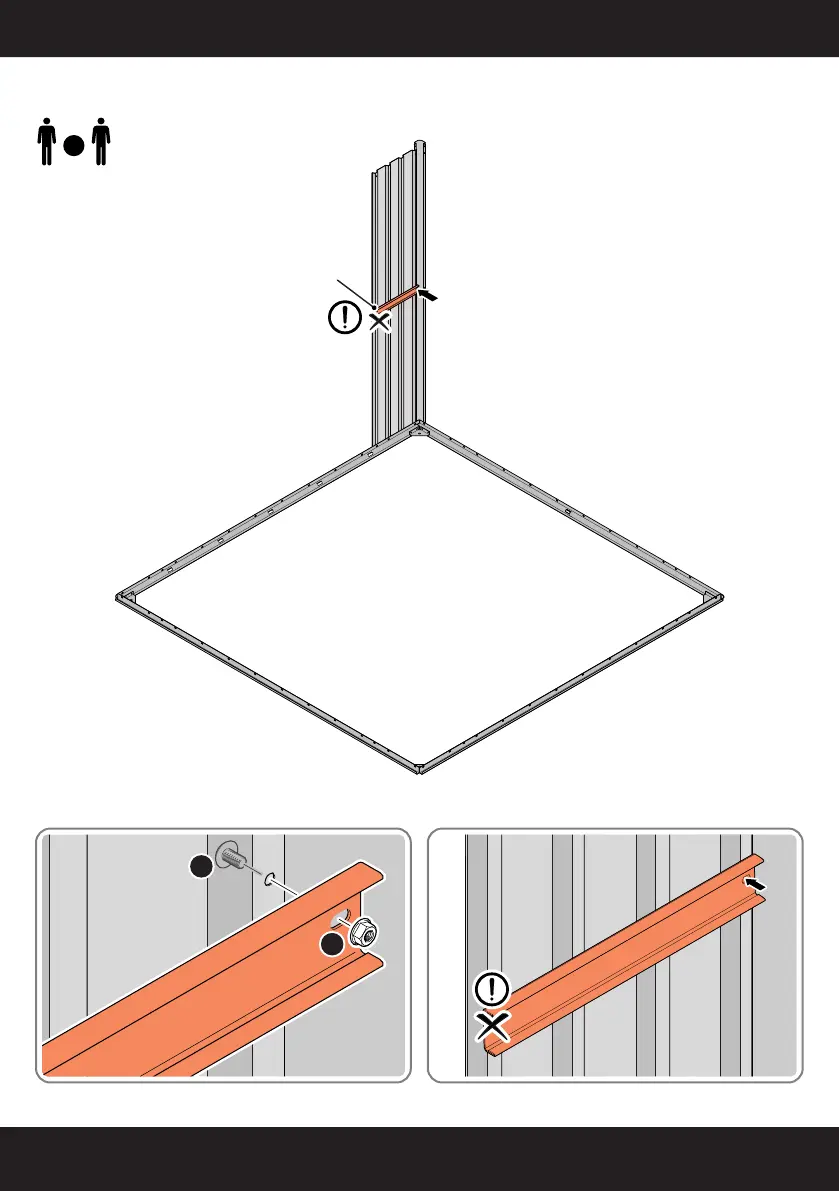

LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0213-04 ONTO WALL PANEL.
0213-04
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE
0213-04 AS SHOWN AT LOCATION INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH AT LOCATION INDICATED ONLY.
FK5
FK1
