HEX Alton - Page 16

Assembly Guide
14
FK1
FK5
FK6
LOCATE CORNER POST 0205-14 AS SHOWN ABOVE.
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
9A 9B

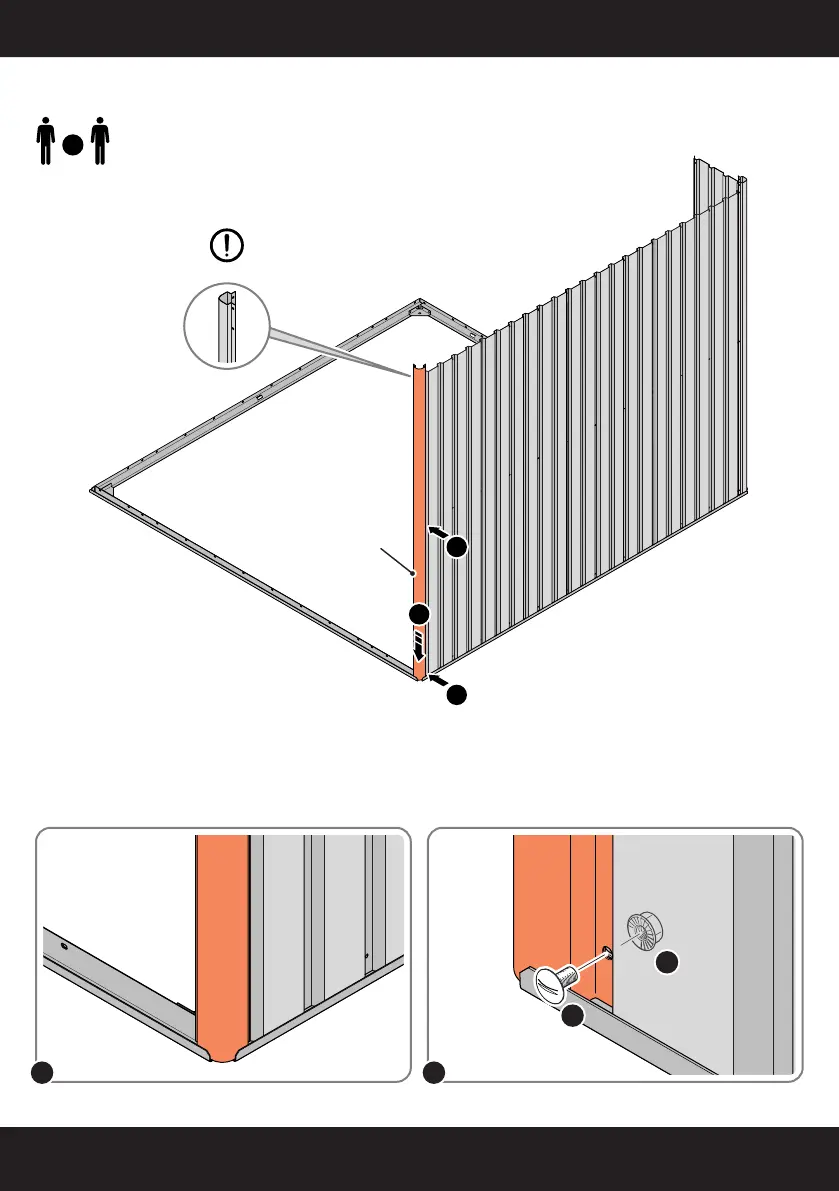

LOCATE AND LOOSELY ATTACH CORNER POST 0205-14.
ASSEMBLY STAGE 9
x2
9B
9B
x2 HOLES AT TOP
9A
0205-14
FK5
