Assembly Guide
15
10A
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6

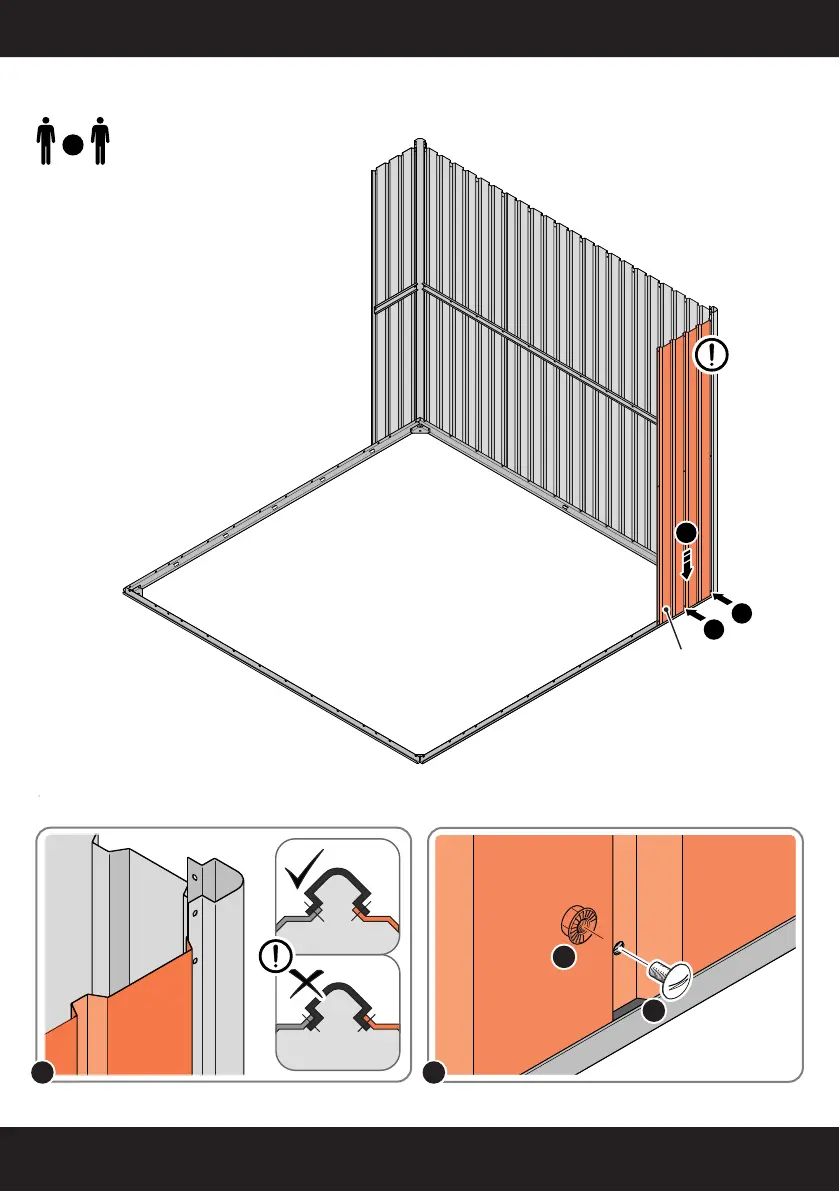

LOCATE FIRST WALL PANEL 0205-13 (1850 x 425mm) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
x2
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-13 (1850 x 425mm).
ASSEMBLY STAGE 10
0205-13
10A
10B
10B
FK5
10B
OUTSIDE
INSIDE
OUTSIDE
INSIDE
