Assembly Guide
16

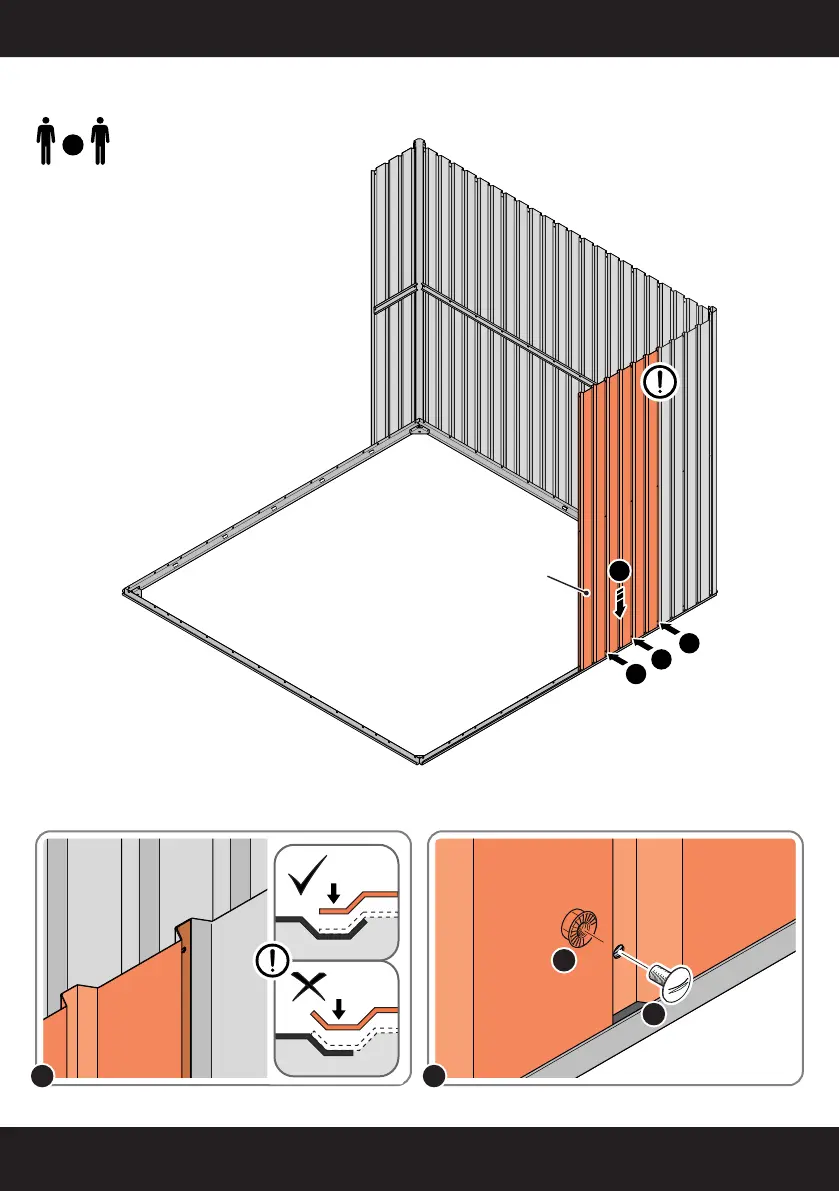

LOCATE WALL PANEL 0205-12 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
11A
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH BACK WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
11B
x2
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 11
11A
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
0205-12
11B
11B
11B
