Assembly Guide
17

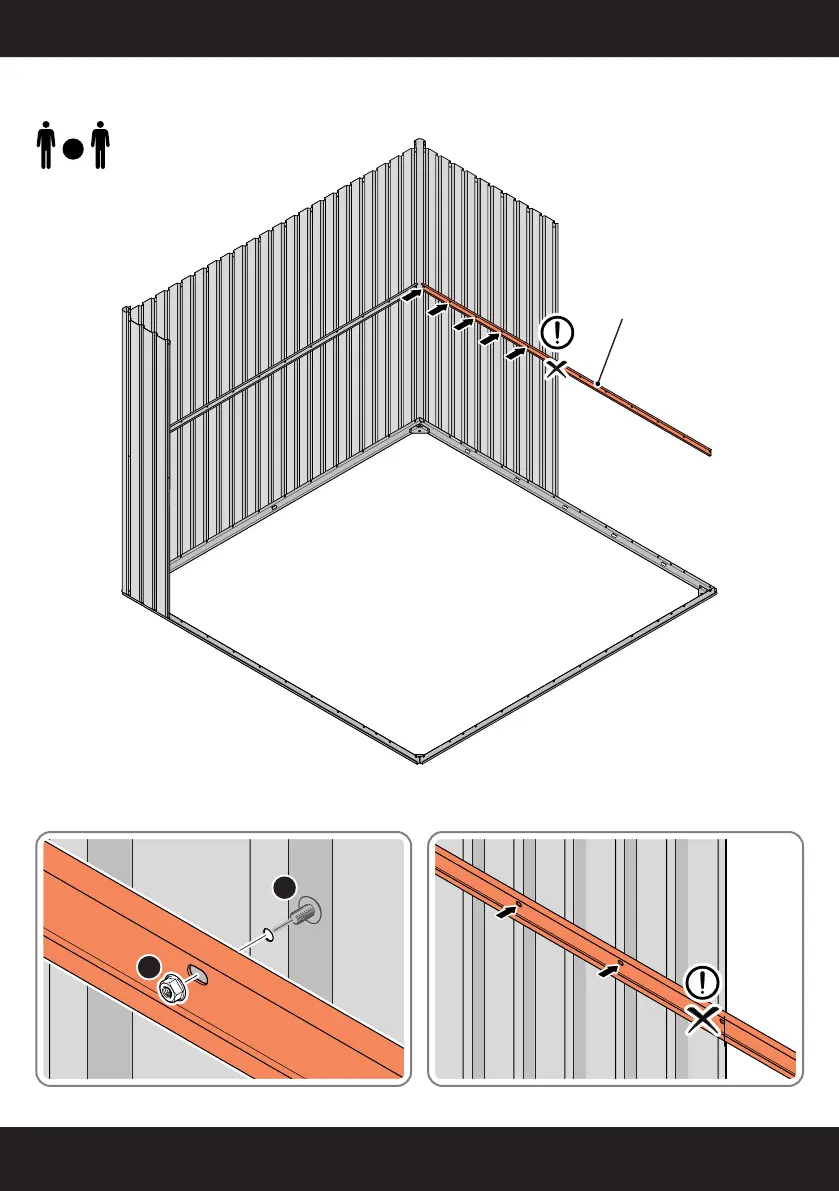

LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0205-09
AS SHOWN AT x5 LOCATIONS INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.
LOOSELY ATTACH AT x5 LOCATIONS INDICATED ONLY.
x2
LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0205-09
ASSEMBLY STAGE 12
FK5
FK1
0205-09
