HEX Alton - Page 20

Assembly Guide
18
FK1
FK5
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
13B

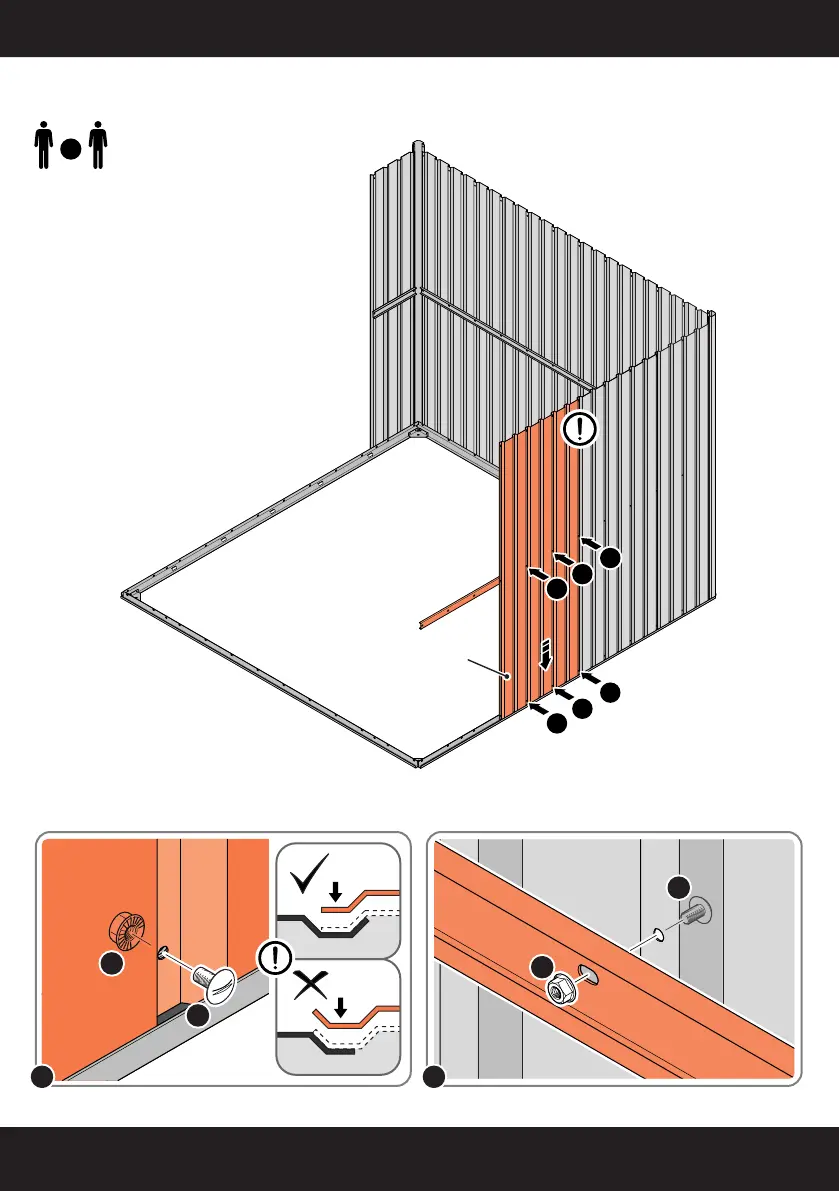

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
x2
ASSEMBLY STAGE 13
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
13A
13B
13B
13B
13A
13A
13A
0205-12
