HEX Alton - Page 21

Assembly Guide
19
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
FK1
14B

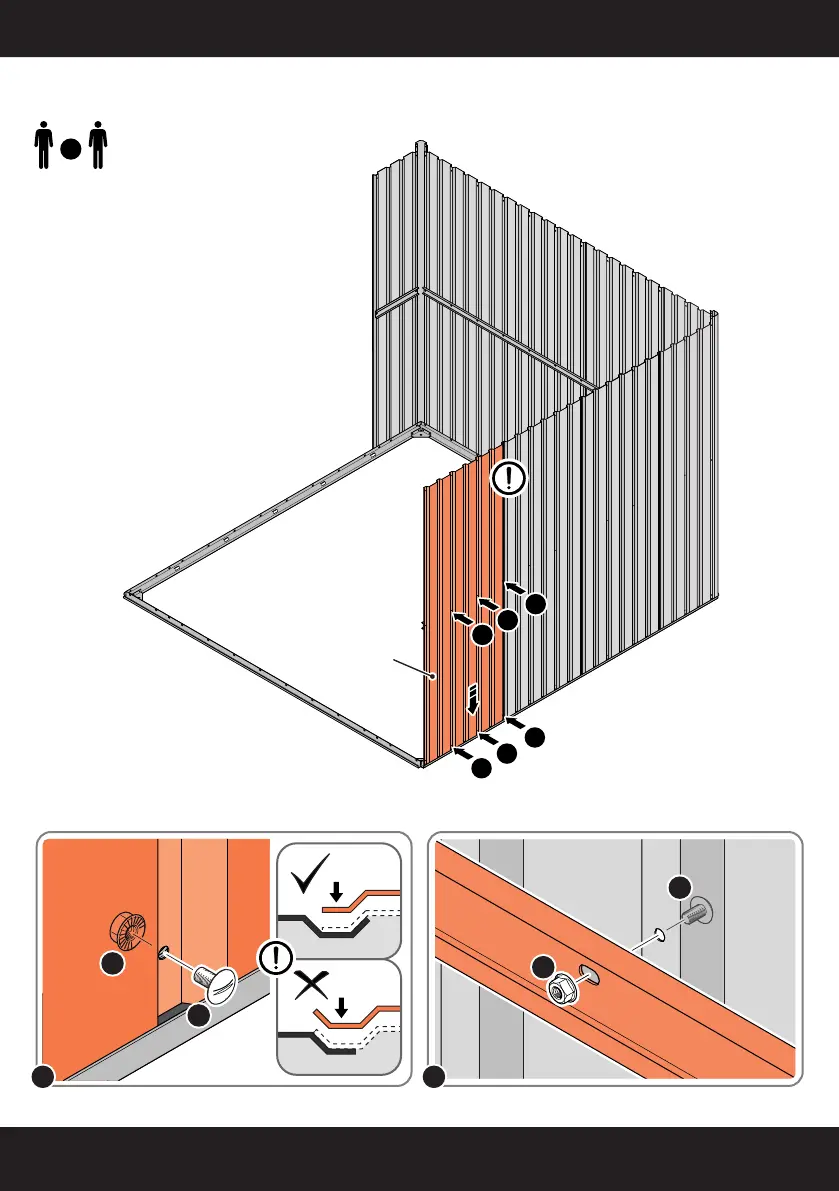

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
x2
ASSEMBLY STAGE 14
FK5
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
14A
14A
14A
14A
14B
14B
14B
0205-12
