Assembly Guide
32
LOCATE LONG TOP RAIL 0213-02 AS SHOWN ABOVE.
SLOT INTO DOOR POST
LOOSELY ATTACH AT x4 LOCATIONS INDICATED.
27A 27B
FK1
x2
ASSEMBLY STAGE 27

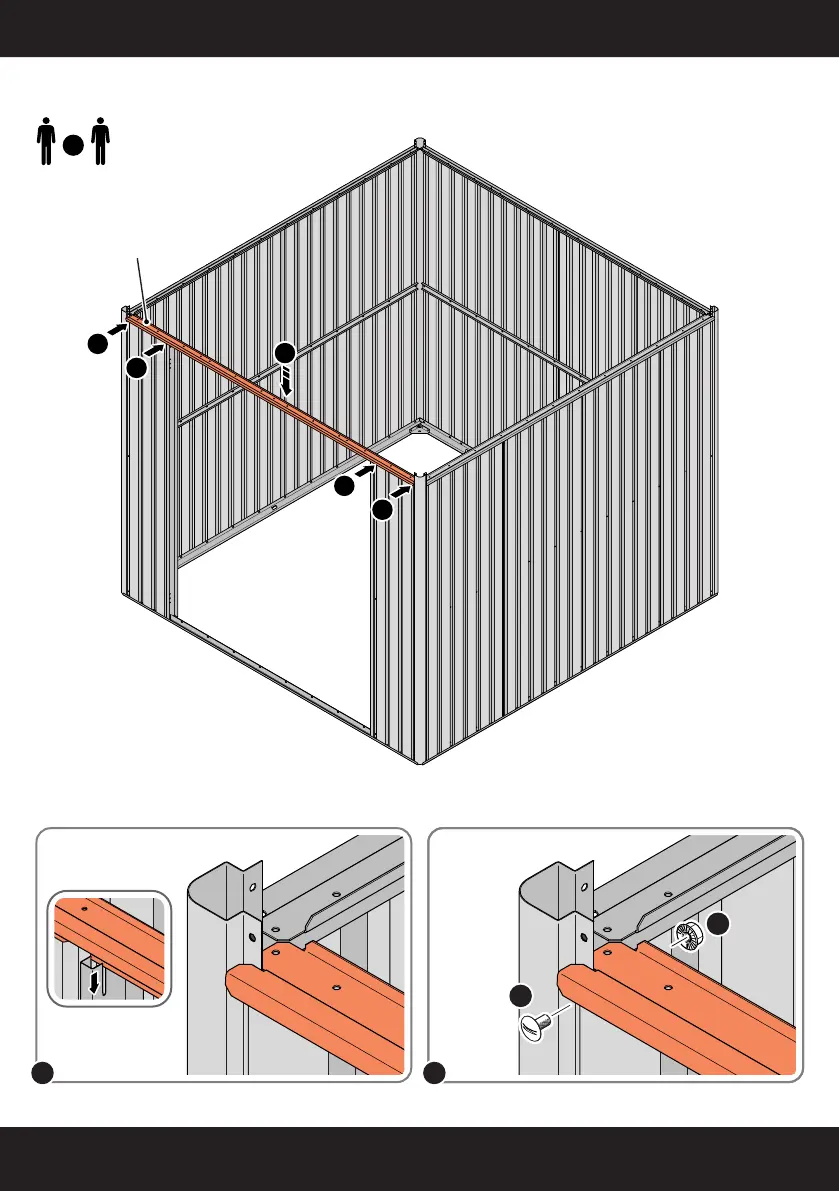

LOCATE AND LOOSELY ATTACH LONG ROOF RAIL 0213-02.
FK5
0213-02
27B
27B
27B
27B
27A
