Assembly Guide
43
INSIDE
OUTSIDE
INSIDE
OUTSIDE
IMPORTANT: ENSURE RUBBER WASHER FK4 IS LOCATED AS SHOWN.
SECURE ROOF PANELS AT LOCATIONS INDICATED USING TYPICAL FIXING METHOD.
38B
FK1
FK4
FK5
38A
x2

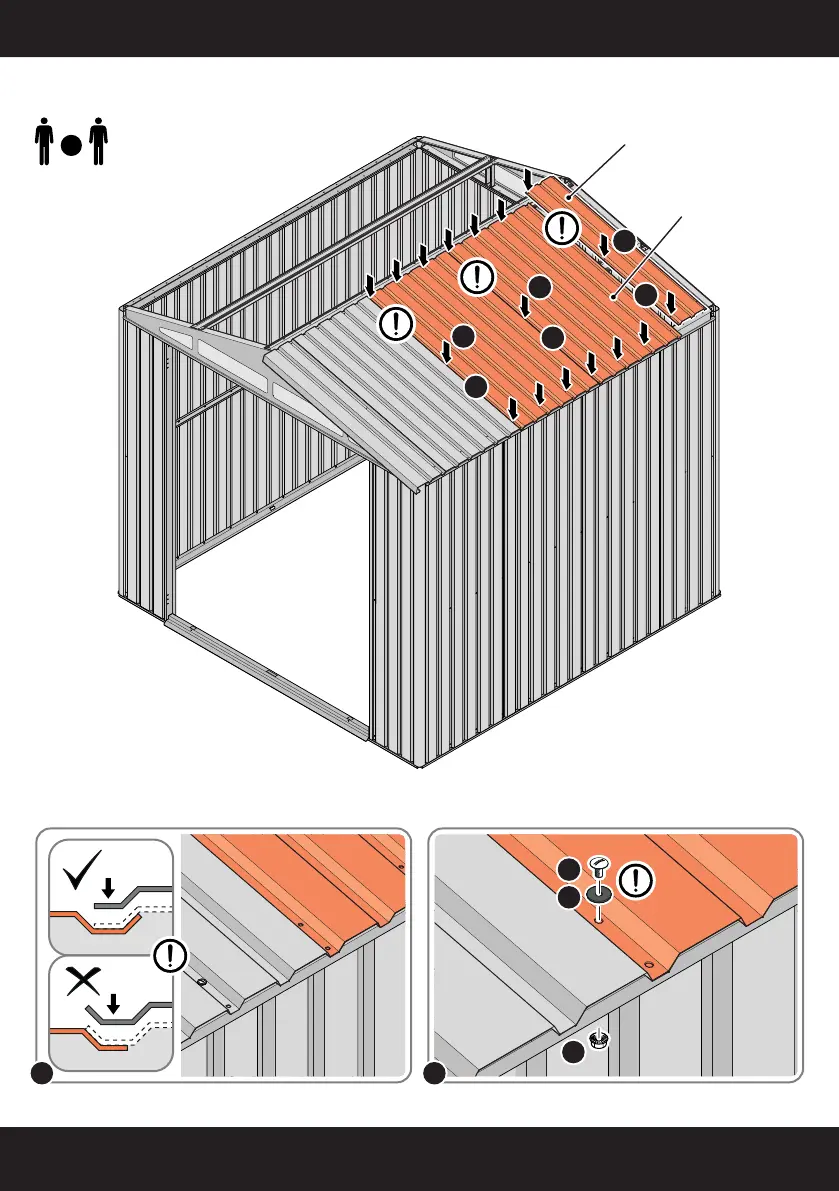

ASSEMBLY STAGE 38
LOCATE AND SECURE ROOF PANELS 0252-03 & ROOF PANEL SMALL 0252-06.
0252-06
0252-03 (x2)
38B
38B
38A
38A
38A
38B
ALIGN AND OVERLAP ROOF PANEL WITH PREVIOUS ROOF PANEL.
IMPORTANT: ENSURE PANELS ALWAYS OVERLAP AS SHOWN.
