HEX Alton - Page 44

Assembly Guide
42
INSIDE
OUTSIDE
INSIDE
OUTSIDE
IMPORTANT: ENSURE RUBBER WASHER FK4 IS LOCATED AS SHOWN. IMPORTANT: ENSURE PANELS ALWAYS OVERLAP AS SHOWN.

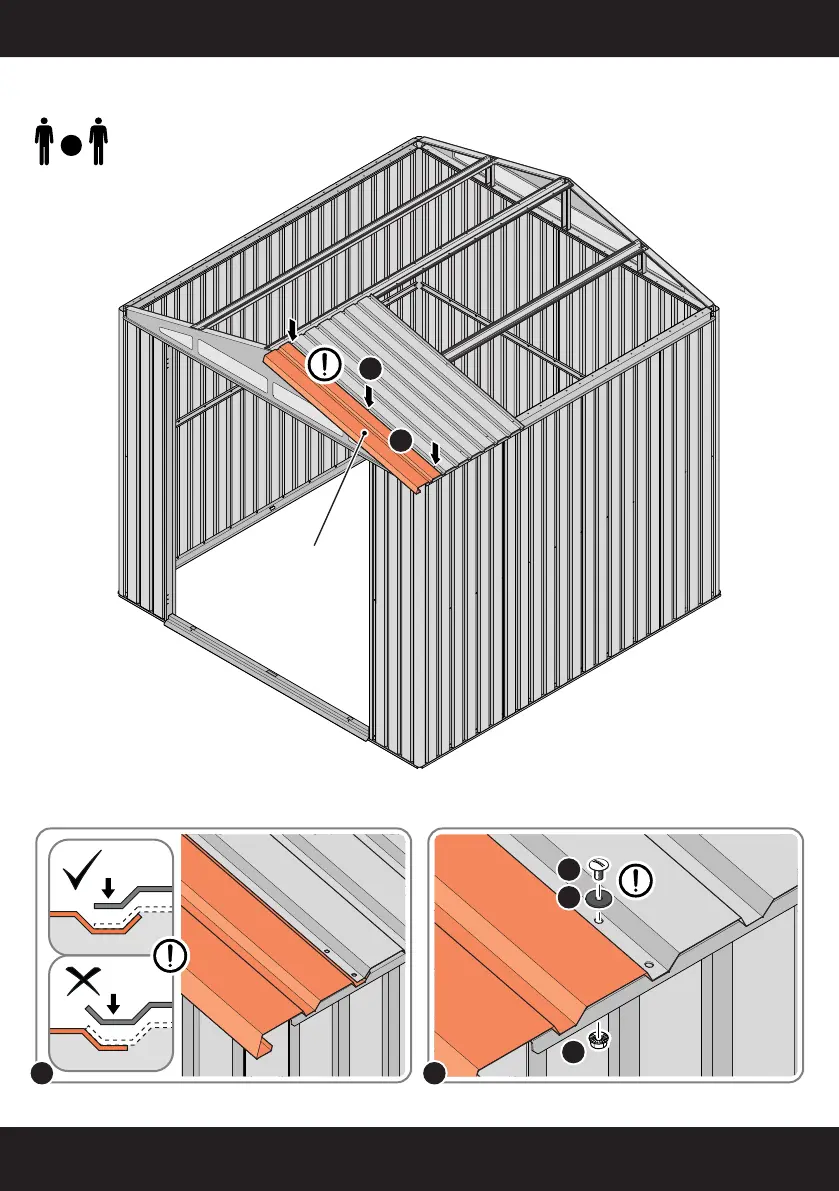

ALIGN AND OVERLAP ROOF PANEL 0252-04 WITH ROOF PANEL SIDE AS SHOWN. SECURE ROOF PANELS AT x 3 LOCATIONS INDICATED USING TYPICAL FIXING METHOD.
37B
FK1
FK4
FK5
37A
x2
ASSEMBLY STAGE 37
LOCATE AND SECURE ROOF PANEL SIDE 0252-04.
0252-04
37B
37A
