Assembly Guide
41
IMPORTANT: ENSURE RUBBER WASHER FK4 IS LOCATED AS SHOWN.
36
SECURE ROOF PANELS AT x4 LOCATIONS INDICATED USING TYPICAL FIXING METHOD.
FK1
FK4
FK1
FK4
FK5
x2

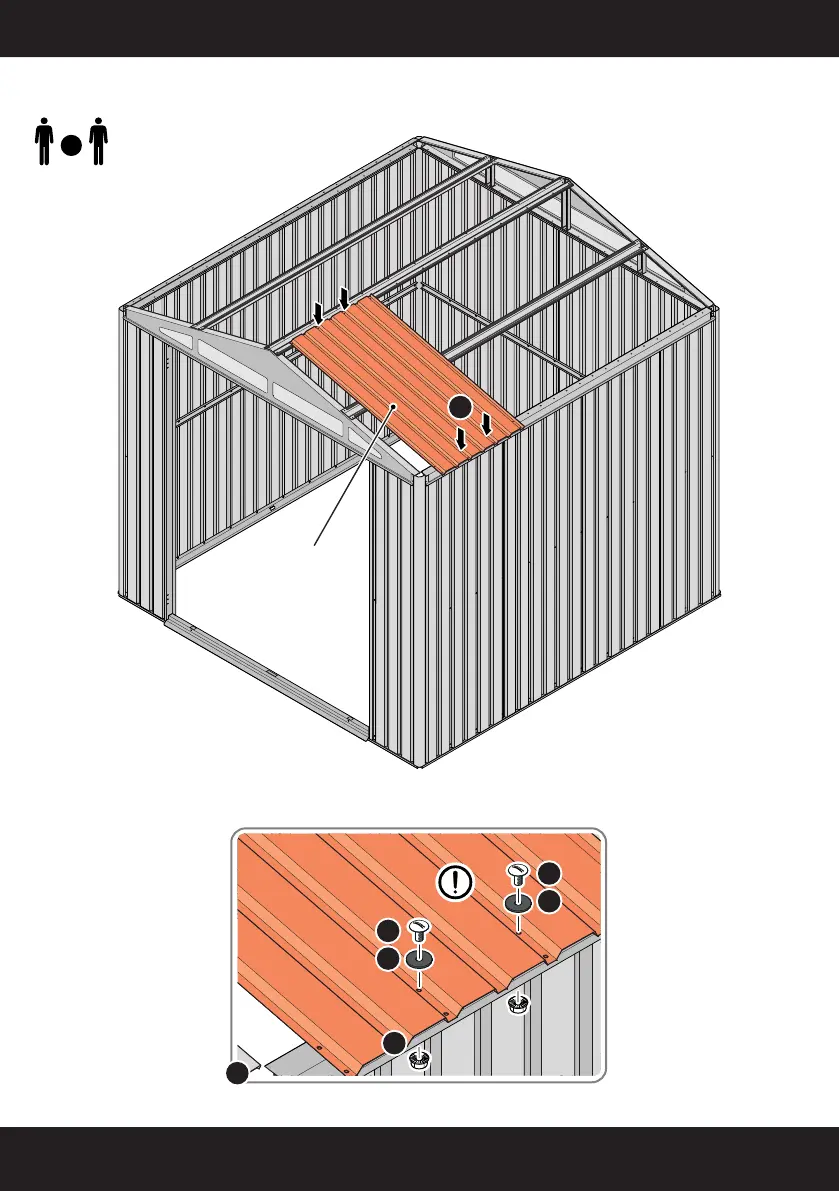

ASSEMBLY STAGE 36
LOCATE AND SECURE ROOF PANEL 0252-03.
0252-03
36
