Assembly Guide
40
x2

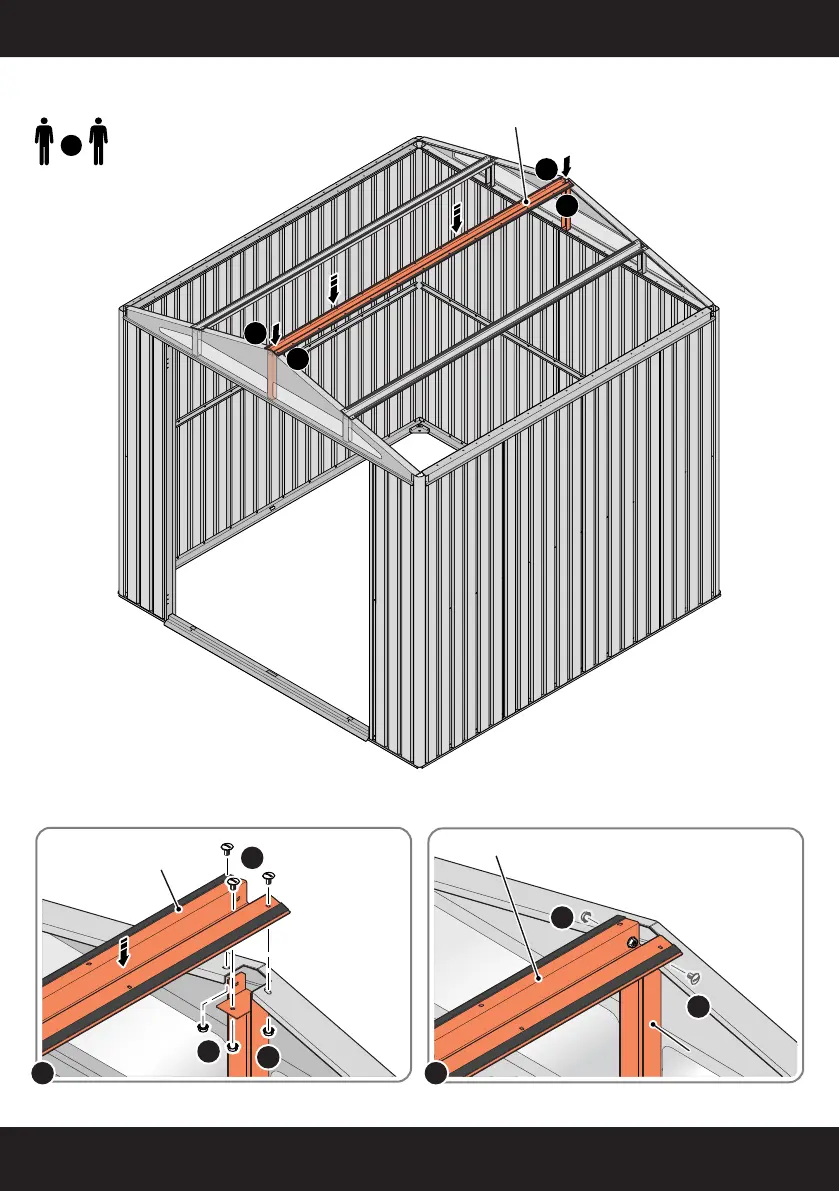

ASSEMBLY STAGE 35
LOCATE AND SECURE ROOF CHANNEL ASSEMBLY 0256-01.
35A
35B
35A
35B
0256-01
FK5
FK5
FK1
35B35A
FK5
FK1
0252-01
0252-01
0252-07
SECURE ROOF CHANNEL ASSEMBLY TO LONG ROOF SUPPORT 0252-07
FIXING POINT (x2 EACH SIDE) USING FASTENERS DETAILED ABOVE.
SLOT ROOF CHANNEL ASSEMBLY 0252-01 INTO ROOF SUPPORT.
FIXING POINT (x3 EACH SIDE) USING FASTENERS DETAILED ABOVE.
