HEX Alton - Page 50

Assembly Guide
48
INSIDE
OUTSIDE
INSIDE
OUTSIDE
IMPORTANT: ENSURE PANELS ALWAYS OVERLAP AS SHOWN.
ALIGN AND OVERLAP ROOF PANEL 0252-04 WITH ROOF PANEL SIDE AS SHOWN.
43A
IMPORTANT: ENSURE RUBBER WASHER FK4 IS LOCATED AS SHOWN.
SECURE ROOF PANELS AT x 3 LOCATIONS INDICATED USING TYPICAL FIXING METHOD.
43B
FK1
FK4
FK5
x2

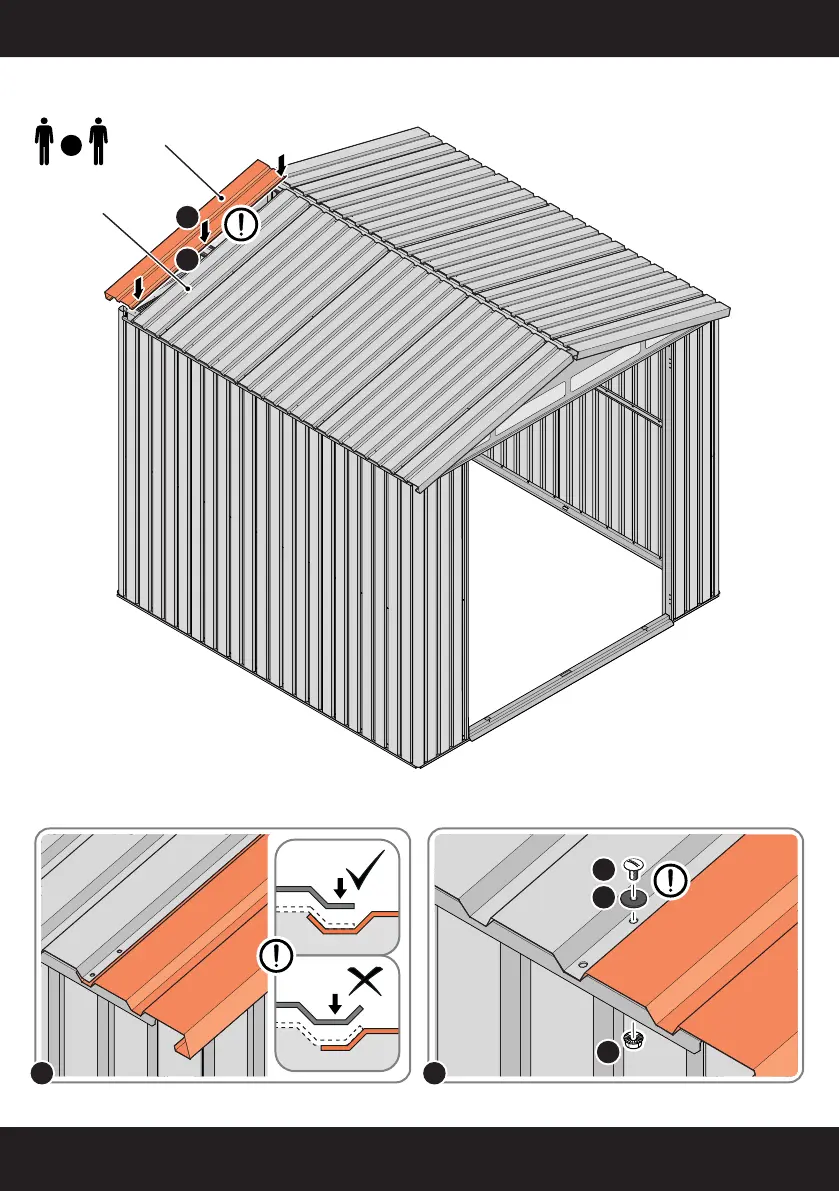

ASSEMBLY STAGE 43
LOCATE AND SECURE ROOF PANEL SIDE 0252-04.
0252-04
0252-06
43B
43A
