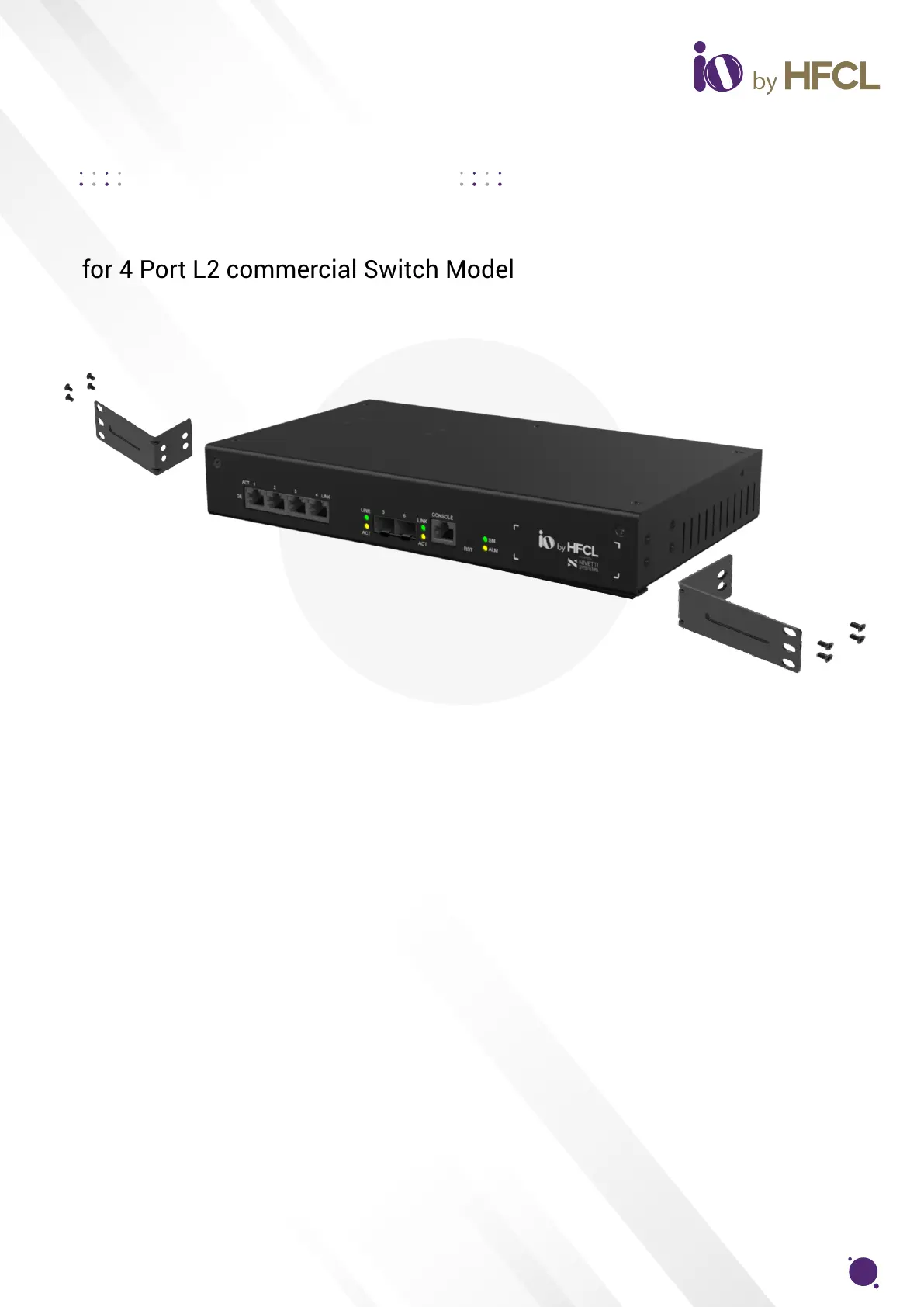

Assembly of brackets for Rack mounting described in below diagram
for 4 Port L2 commercial Switch Model
Bracket Assembly
04
Step 1. Secure the brackets to the device using the supplied
screws from the Mounting Accessory.
Step 2. Install the device in the rack using four rack-mounting
screws. Ensure that the lower rack-mounting screws are
secured first to prevent the brackets from bending due
to the Switch's weight.
Step 3. If installing multiple Switches, mount them in the rack,
one below the other, in any order, maintaining required
space for cabling.
Step 4. Securely connect to power source and turn on to
configure and operate.
4-Port L2
Switch Model
