HHGK SCH-I - Control Panel Overview; Panel Component Descriptions

2
SCH-Ⅰ microcomputer system is suitable for fixed-length eagerly machine, Cutting
machine, cutter, single-film flexible packaging machines and other machinery. The system is
designed in the electrical, optical as a whole, using high-performance single-chip
microcomputer as the core, control, high torque, high-precision stepper motor control of
fixed-length, high-resolution optical switch track is amended to align with the system's
machinery, a high-speed, accurate and stable performance characteristics.

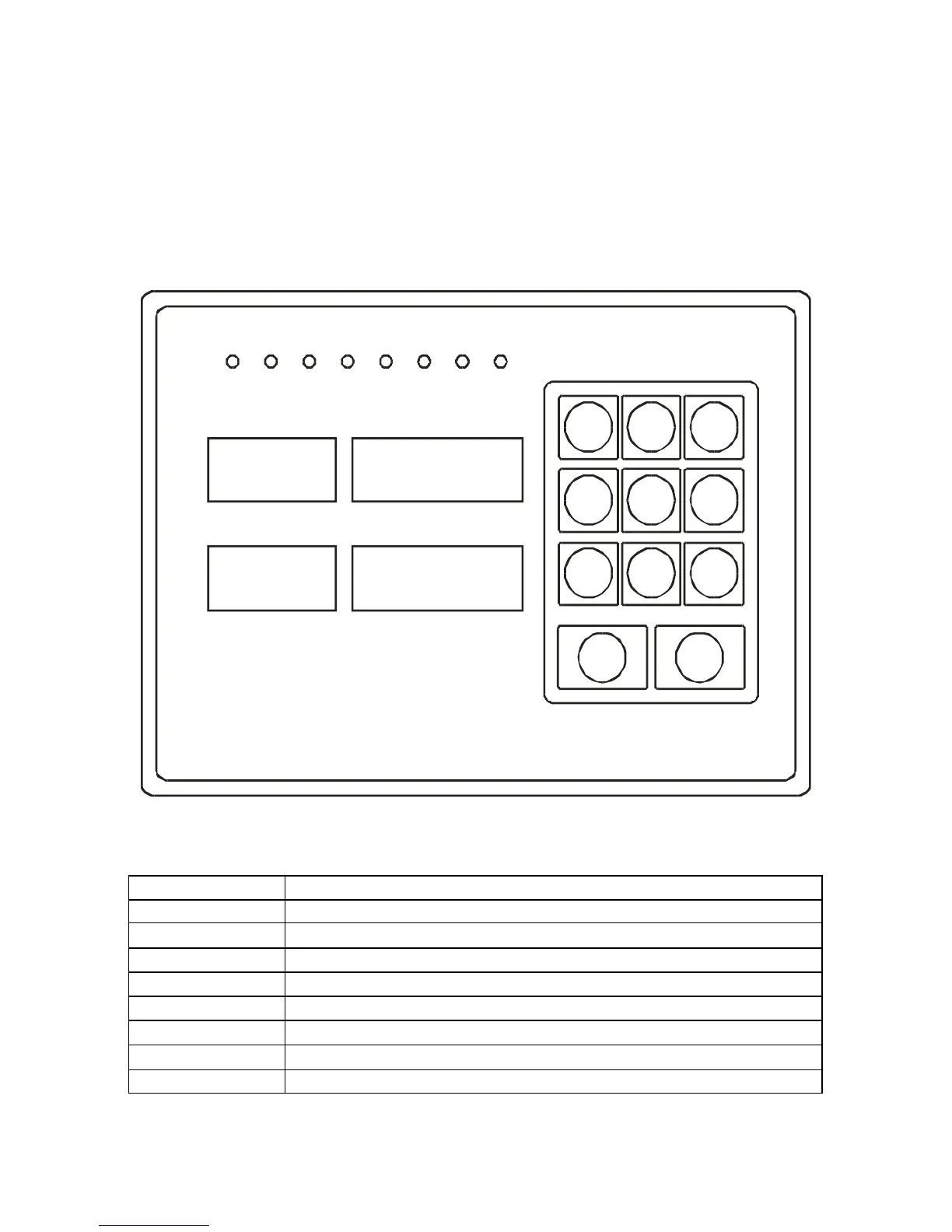

1. Control panel
故障
Err
运行
Run
步进
SM
印刷
COLR
电眼
EYE
霍尔1
Gk1
霍尔2
Gk2
霍尔3
Gk3
批数(批)
Ba tc h(B AT )
个 数(个)
Co un t(P CS )
生产 速度(个/分)
Sp ee d(P PM )
长度( mm )
Le ng th( mm )
SCH -Ⅰ定长控制 器
清零
CL R
印/空
P/ B
↑
←
设置
SE T
→
↓
点退
CC W
点进
CW
运行
RU N
停止
ST OP
2. Panel Description
lamp
Function Description
故障（Err）
Failure alarm light
运行（Run）
Host running lights
步进（SM）
Step pulse output light
印刷（COLR）
Work for the printing light
电眼（EYE）
Electric eye lit when there is signal input (X2 port)
霍尔 1（Gk1）
Hall signal input when there is low light (X0 port)
霍尔 2（Gk2）
Feeding with the high Hall lit a signal input (X1 port)
霍尔 3（Gk3）
Backward Hall are lit when the signal input (X3 port)
