Operating Instruction Manual:
OM-TWS-N-01
9

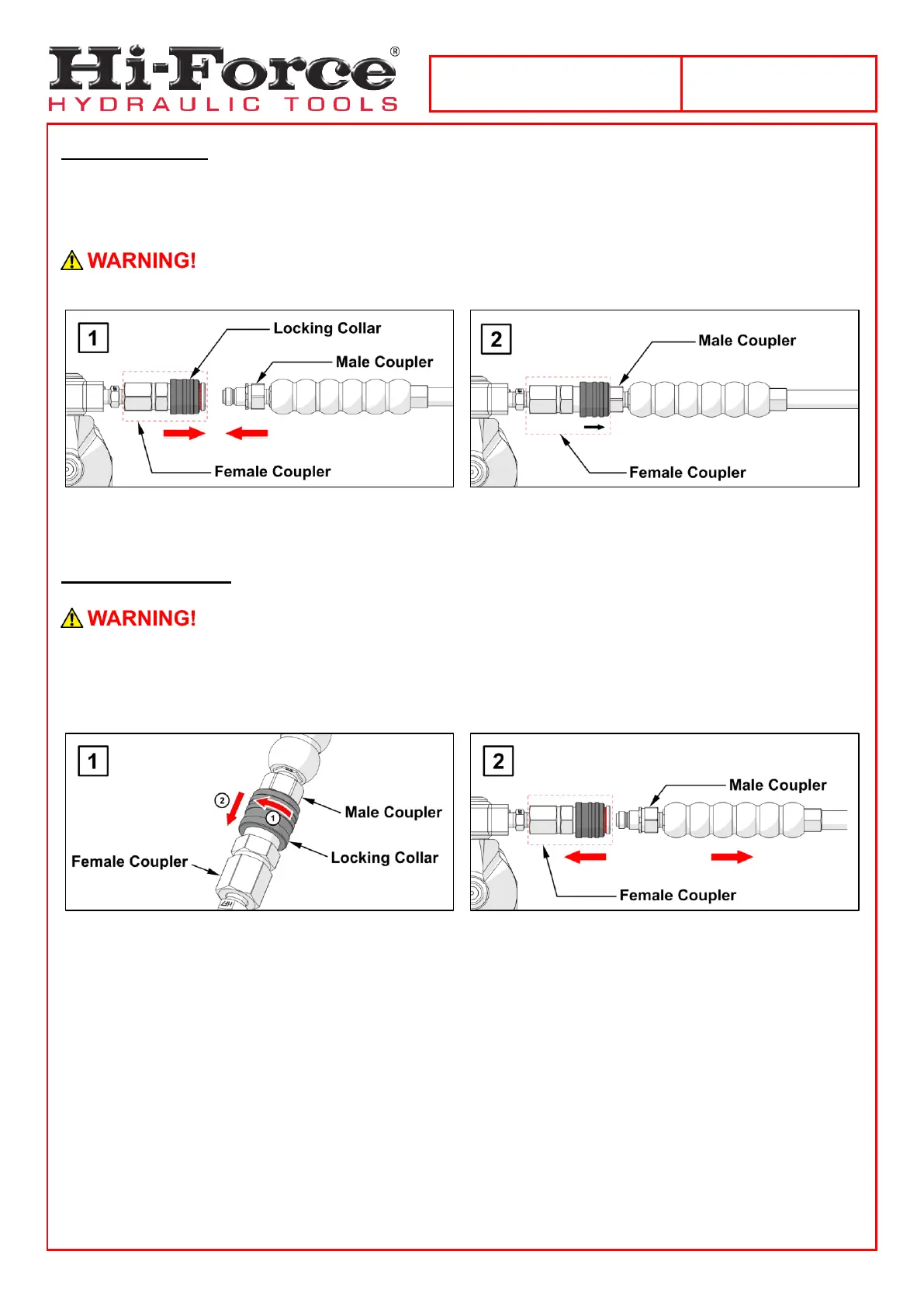

5.2.1 Connections (See figure 5.1)
Connections between couplers are made by simply [1] pressing the male coupler into the female coupler
until [2] the locking collar springs forward and locks the couplers together.
Make certain the spring-loaded retaining rings are fully engaged to prevent the
connectors from disengaging under pressure. A gentle tug on the hose should be
enough to make sure the hose is correctly connected.
5.2.2 Disconnections (See figure 5.2)
Always make sure the pump is switched off and pressure has been fully released before
disconnections are made.
To disconnect couplers; [1-1] twist the locking collar on the female coupler in the direction of arrow and
[1-2] pull back toward the female coupler body. [2] With the locking collar retracted, pull the male and female
couplers apart. Fit dust caps after disconnections are made.
Figure 5.1: Hydraulic Connections
Figure 5.2: Hydraulic Disconnections
