EN

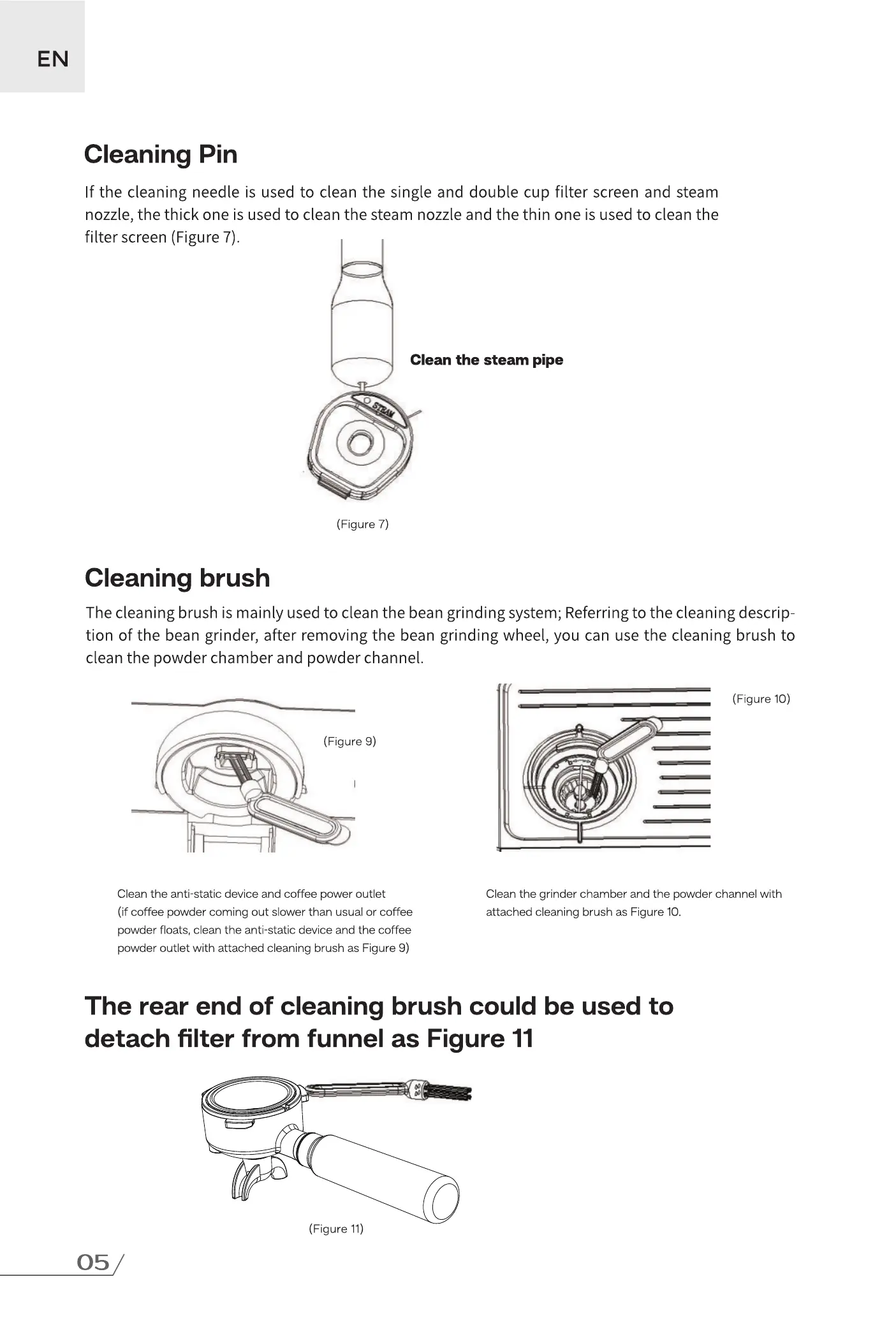

Cleaning Pin
If the cleaning needle is used to clean the single and double cup filter screen and steam
nozzle, the thick one is used to clean the steam nozzle and the thin one is used to clean the
filter screen (Figure 7).
Clean the steam pipe
(Figure 7)
Cleaning brush
The cleaning brush is mainly used to clean the bean grinding system; Referring to the cleaning descrip-
tion of the bean grinder, after removing the bean grinding wheel, you can use the cleaning brush to
clean the powder chamber and powder channel.
(Figure 9)
Clean the anti-static device and coffee power outlet
(if coffee powder coming out slower than usual or coffee
powder floats, clean the anti-static device and the coffee
powder outlet with attached cleaning brush as Figure 9)
(Figure 10)
Clean the grinder chamber and the powder channel with
attached cleaning brush as Figure 10.
The rear end of cleaning brush could be used to
detach filter from funnel as Figure 11
(Figure 11)
05 /
