Hickok 6000A - Preparation for Use; Test Procedures; Filament Continuity Test

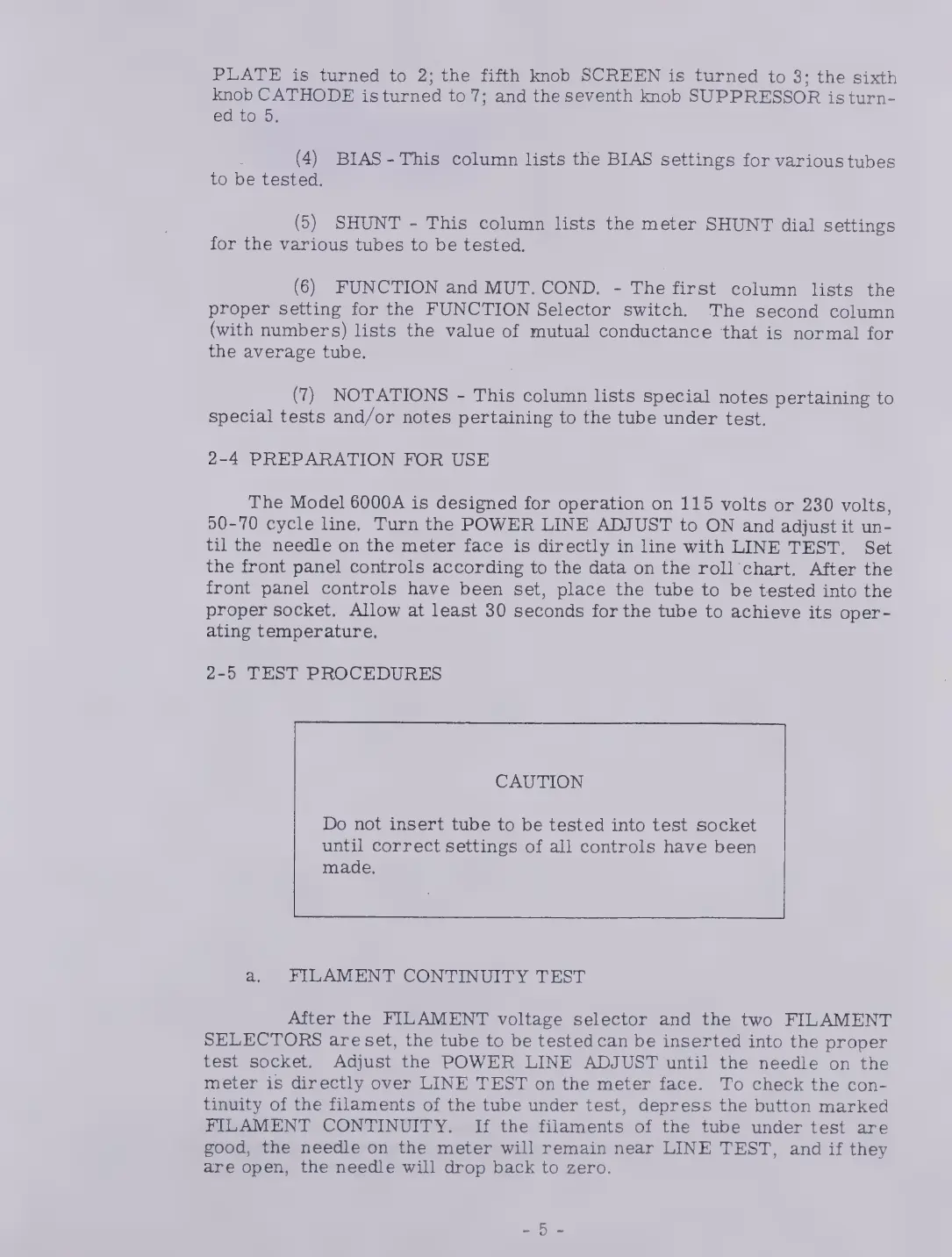

PLATE
is
turned
to
2;
the
fifth
knob
SCREEN
is
turned
to
3;
the
sixth
knob
CATHODE
is
turned
to
7;
and
the
seventh
knob
SUPPRESSOR
is
turn-
ed to 5.
|
(4)
BIAS-
This
column
lists
the
BIAS
settings
for
various
tubes
to
be
tested.
(5)
SHUNT
-
This
column
lists
the
meter
SHUNT
dial
settings
for
the various
tubes
to be
tested.
(6) FUNCTION and MUT. COND. - The first column lists the
proper
setting
for
the
FUNCTION
Selector
switch.
The
second
column
(with numbers) lists the value of mutual conductance that is normal for
the average tube.
(7)
NOTATIONS
-
This
column
lists
special
notes
pertaining
to
special
tests
and/or
notes
pertaining
to
the
tube
under
test.
2-4 PREPARATION FOR USE
The Model 6000A is designed for operation on 115 volts or 230 volts,
50-70
cycle
line.
Turn
the
POWER
LINE
ADJUST
to
ON
and
adjust
it
un-
til the needle on the meter face is directly in line with LINE TEST. Set
the front panel controls according to the data on the roll chart. After the
front
panel
controls
have
been
set,
place
the
tube
to
be
tested
into
the
proper socket. Allow at least 30 seconds for the tube to achieve its oper-
ating temperature.
2-5 TEST PROCEDURES
CAUTION
Do not insert tube to be tested into test socket
until correct settings of all controls have been
made,
а, FILAMENT CONTINUITY TEST
After the FILAMENT voltage selector and the two FILAMENT
SELECTORS аге set, the tube to be tested сап be inserted into the proper
test socket. Adjust the POWER LINE ADJUST until the needle on the
meter is directly over LINE TEST on the meter face. To check the con-
tinuity of the filaments of the tube under test, depress the button marked
FILAMENT CONTINUITY. If the filaments of the tube under test are
good, the needle on the meter will remain near LINE TEST, and if they
are open, the needle will drop back to zero.
