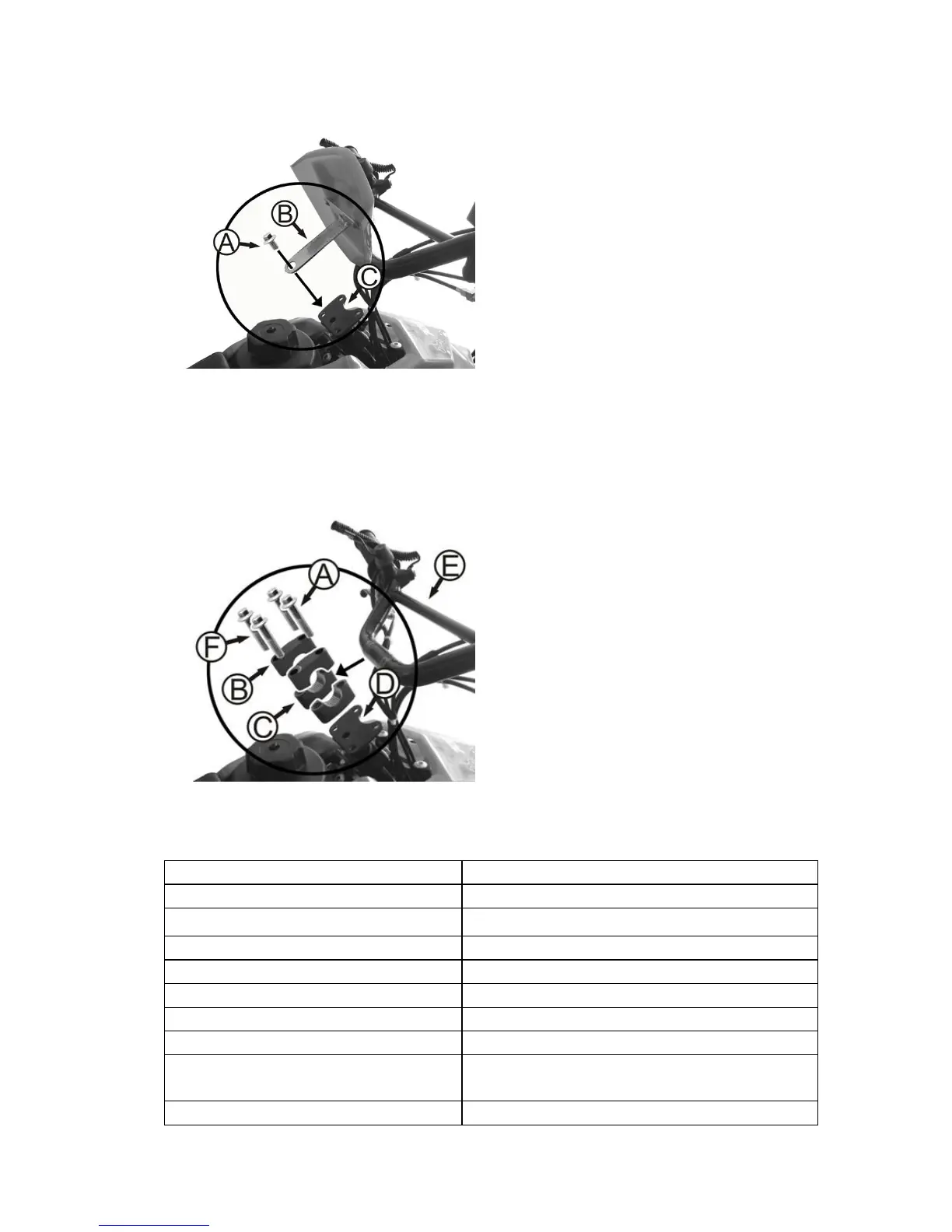

High Per 49CC MINI - Handlebar and Number Board Assembly; Technical Specification Sheet Overview

10
A: Bolt M8×16 1pcs
B: Number board bracket
C: Steering rod plate
1. Place the bracket (B) on the steering rod
plate (C) with the hole in alignment.
2. Install the bolt (A) and tighten it
with 10mm open end wrench
ASSEMBLY HANDLEBAR
WARNING:
Failing to properly adjust and tighten the bolts that affix the handlebars can cause you to lose
control and crash.
A: Bolt M8×50 4pcs
B: Upper Clamp
C: Bottom Clamp
D: Steering rod bracket
E: Handle bar
1. Put the bottom clamp(C) on the steering
rod plate(D) with the screw hole in
alignment, and place the handlebar (E) in
the bottom clamp, then cover the upper
clamp (B) on the handlebar and install the
4pcs bolt (A).
2. Place the handlebar in the upright and
vertical position, then tighten all the bolts
securely with 10mm socket spanner.
TECHNICAL SPECIFICATION SHEET
Engine type
single cylinder, 2 stroke, forced air cooling
Power output
2.0kw/7500rpm
Max torque
2.3 N.m/3600rpm
Displacement (ml)
44
Fuel
Petrol mixed with 4% 2-stroke engine oil
Compression Ratio
7.5 : 1
Transmission
automatic with centrifugal clutch
Start method
manual pull start
Optional / battery
12V 4AH (only available in mini ATV with electric
starter)
Max speed (km/h)
32
