UM ColorVu DS-2CExxDFT-Fxx 122919NA 15
3. Disassemble the junction box, and align the screw
holes of the turret camera’s mounting base with
those on junction box’s cover.
4. Fix the mounting base on junction box’s cover by
supplied screws.

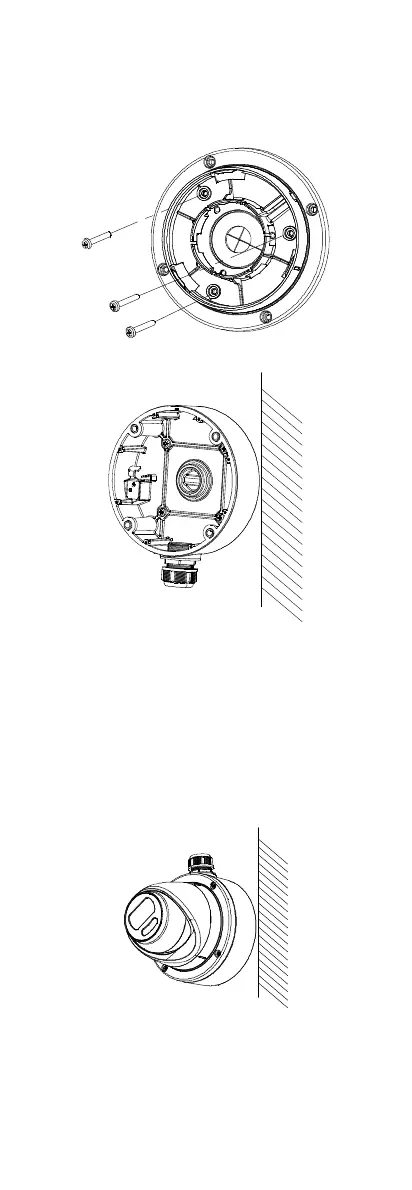

Figure 21, Install Turret Camera’s Mounting Base
Figure 22, Install Junction Box Body on Ceiling/Wall
5. Secure the junction box’s body to the ceiling/wall
with supplied screws.
6. Attach the junction box cover to the junction box
body.
7. Repeat steps 5 to 8 of
2.3.1 Ceiling/Wall Mounting
without Junction Box
to install the camera to the
junction box.
Figure 2-8 Fix the Camera to the Junction Box
To Next Page
